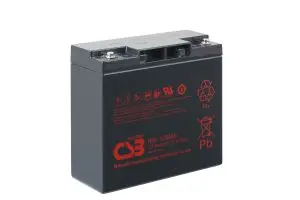

CSB XTV12200-WT SLA (AGM) Battery

SKU: CS-XTV12200-WTRFR Categories: , , , , , , , Tags: , , , , ,

CSB XTV12200-WT XTV Series 12 Volt / 20 Ah @20 Hr with Recessed M5 Terminals and Flame Retardant UL94-V0 Case

Loading...

Description

CSB XTV12200-WT XTV Series 12 Volt / 20 Ah @20 Hr with Recessed M5 Terminals and Flame Retardant UL94-V0 Case

Specifications
Battery Store SKU CS-XTV12200-WTRFR
Dimensions 7.12″ (L) x 2.99″ (W) x 6.50″ (H)
Dimensions (mm) 181 mm (L) x 76 mm (W) x 165 mm (H)
Weight 14.0 lbs (6.4 kgs)

Additional information

Weight 14.0 lbs
Manufacturer

CSB

price-discounts

Each (1 pieces)

Product Line
Product Series

XTV Series

Model

XTV12200-WT

Terminal

Recessed M5

Terminal Layout
Case Material

Flame Retardant UL94-V0

UPC Code
Manufacturers Model #

XTV12200-WT

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

20 Ah @20 Hr

Capacity @20 Hr

20

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min
CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Gel

Design Life

12 Years

Service Life
Shelf Life

6

Internal Resistance

12.2 mOhm

Maximum Current

230 Amp

Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.4 to 15.0 VDC

Maximum Charge Current

6.0 Amp

Operating Temp Low (°F)

-4

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-20

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

7.12

Width (In)

2.99

Height - Case (In)

6.50

Height - Overall (In)

6.50

Length (mm)

181

Width (mm)

76

Height - Case (mm)

165

Height - Overall (mm)

165

Weight (lb)

14.0

Weight (kg)

6.4

BCI Group

M17 Size

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
