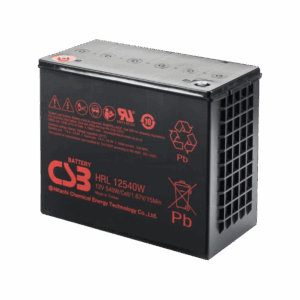

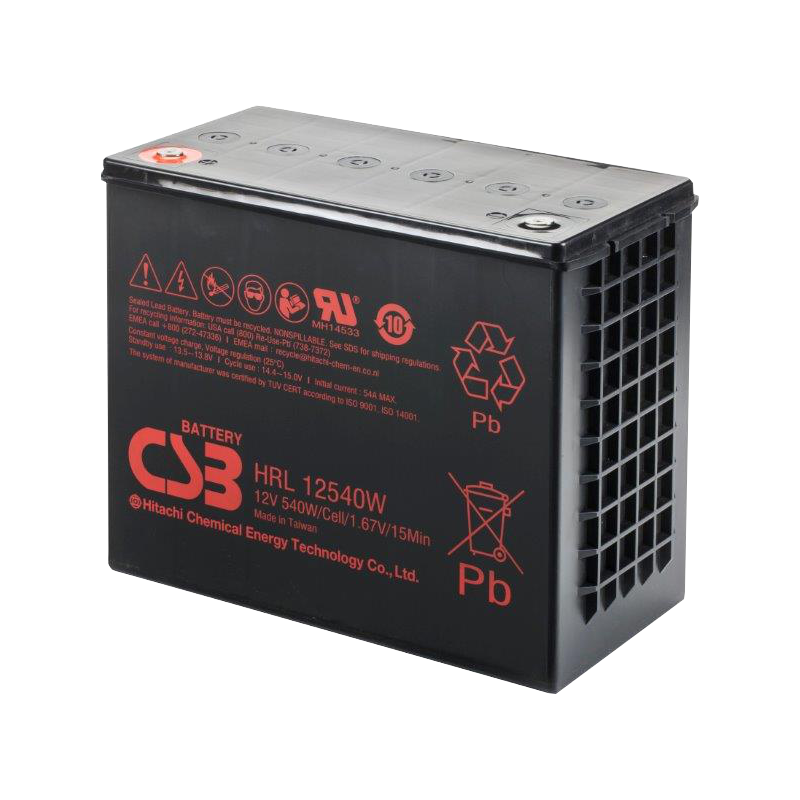

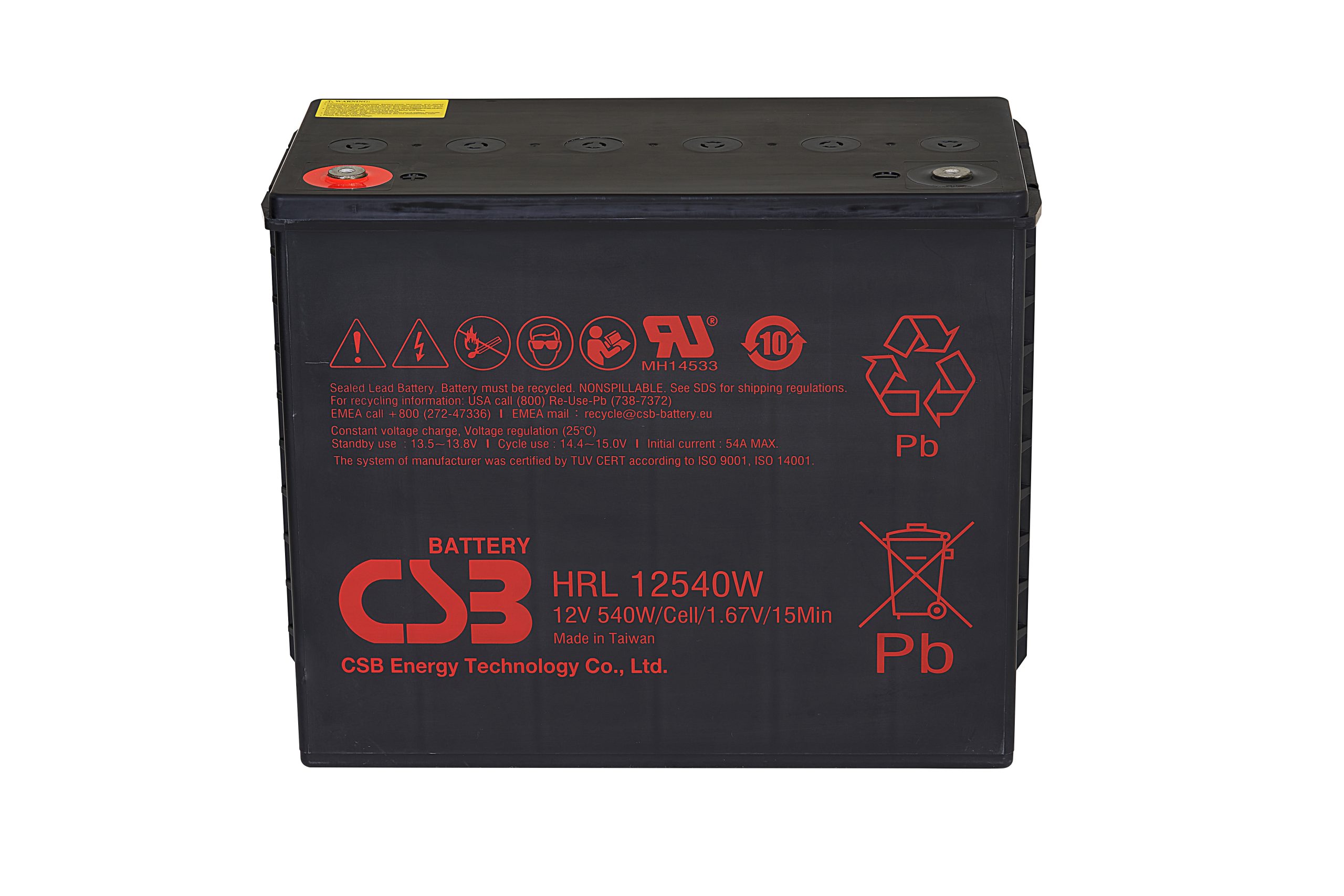

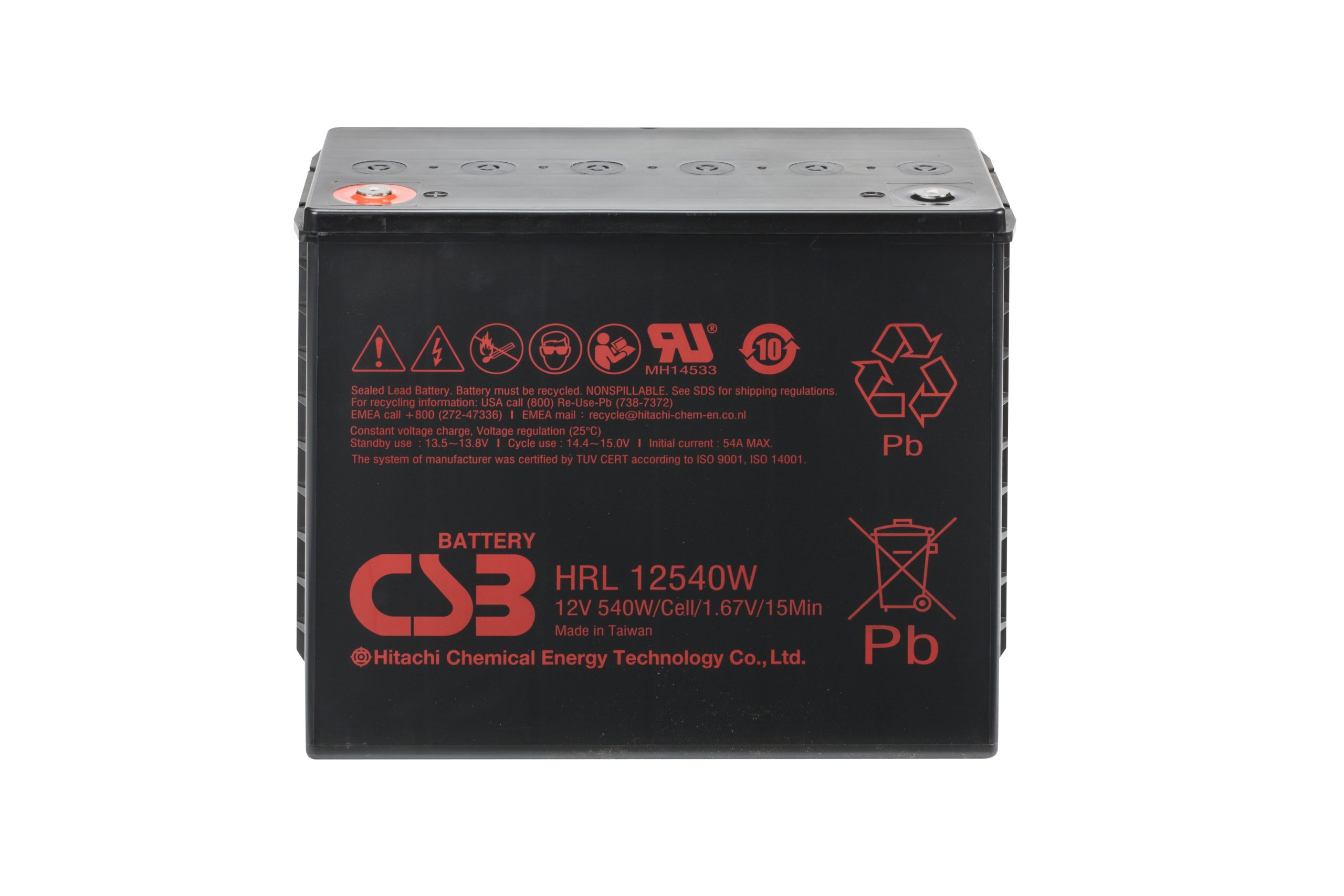

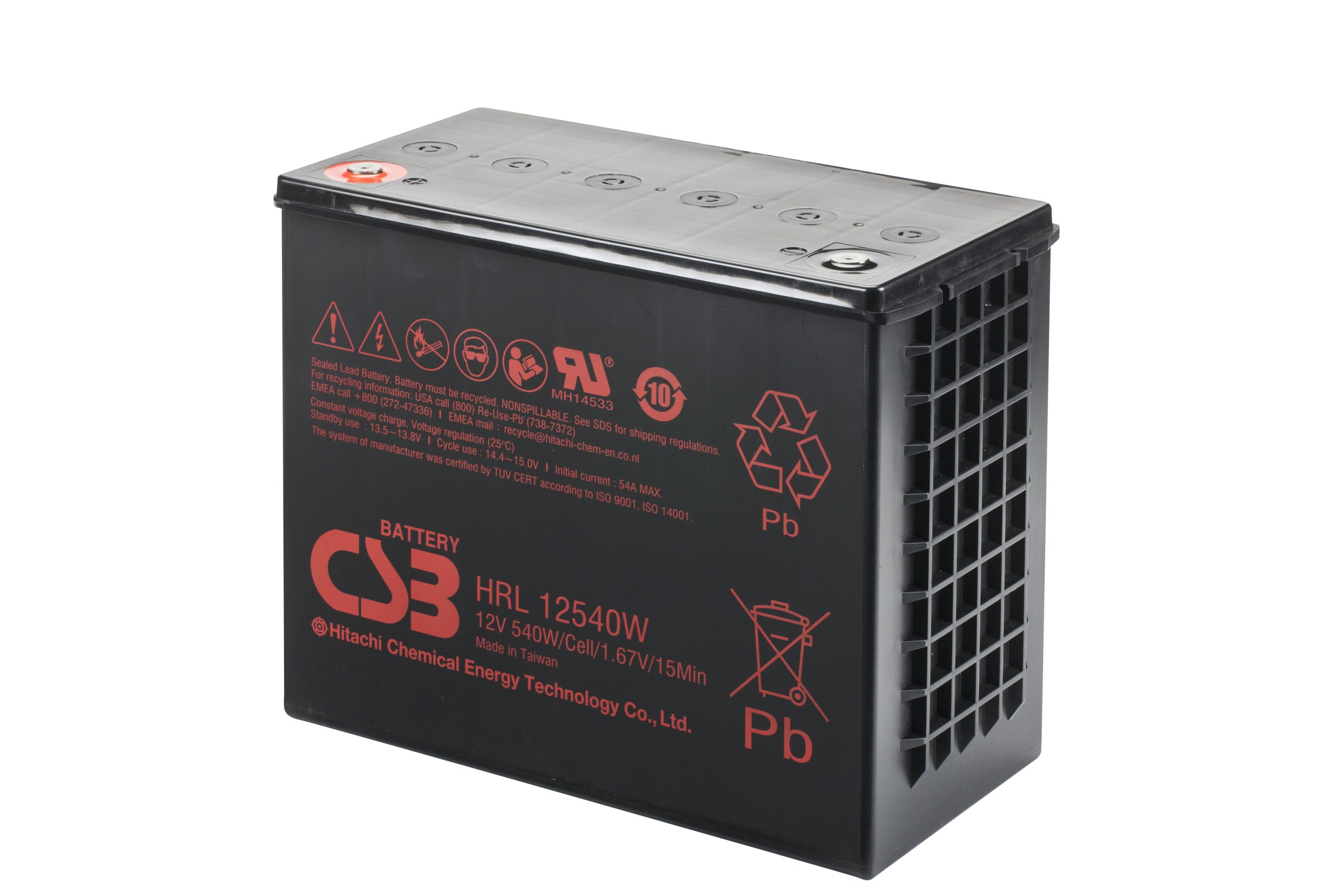

CSB HRL12540W SLA (AGM) Battery

As low as $332.64 each

CSB HRL12540W HRL Series 12 Volt / 135 Ah @20 Hr with Recessed Terminals and ABS Plastic Case

Loading...

Description

CSB HRL12540W HRL Series 12 Volt / 135 Ah @20 Hr with Recessed Terminals and ABS Plastic Case

Specifications
Battery Store SKU CS-HRL12540WR
Dimensions 13.50″ (L) x 6.69″ (W) x 10.75″ (H)
Dimensions (mm) 343 mm (L) x 170 mm (W) x 273 mm (H)
Weight 96.6 lbs (43.89 kgs)

Additional information

Weight 96.6 lbs
Manufacturer

CSB

price-discounts

Each (1 Pieces), Pallet Layer (10 Pieces), Pallet (20 Pieces)

Product Line
Product Series

HRL Series

Model

HRL12540W

Terminal

Recessed

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

HRL12540W

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

135 Ah @20 Hr

Capacity @20 Hr

135

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min

540 W @15 Min

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life
Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.4 to 15.0 VDC

Maximum Charge Current
Operating Temp Low (°F)
Operating Temp High (°F)
Storage Temp Low (°F)
Storage Temp High (°F)
Operating Temp Low (°C)
Operating Temp High (°C)
Storage Temp Low (°C)
Storage Temp High (°C)
Length (In)

13.50

Width (In)

6.69

Height - Case (In)

10.75

Height - Overall (In)

10.87

Length (mm)

343

Width (mm)

170

Height - Case (mm)

273

Height - Overall (mm)

276

Weight (lb)

96.6

Weight (kg)

43.89

BCI Group

Group 31T

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
