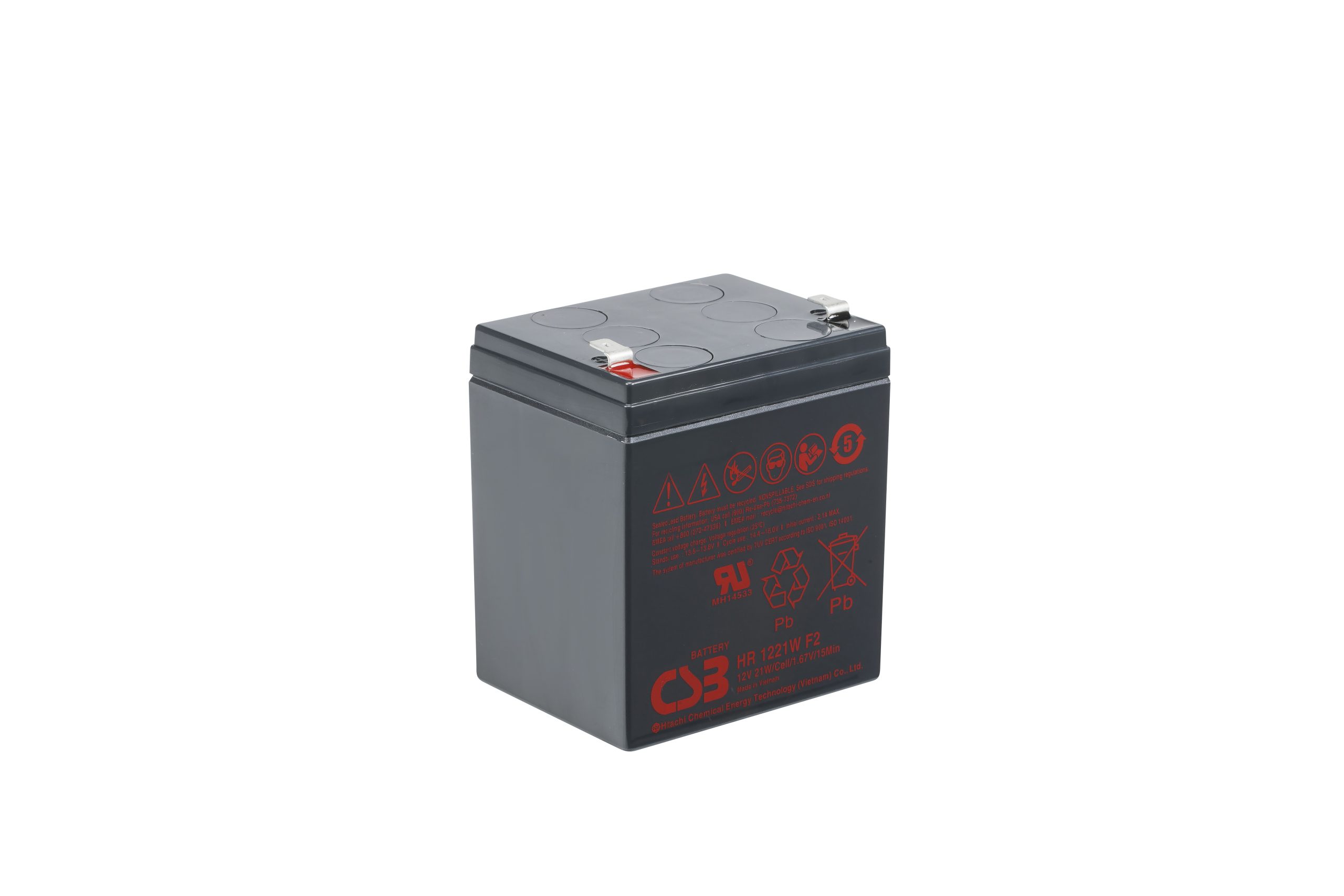

CSB HR1221WF2 SLA (AGM) Battery

As low as $16.78 each

CSB HR1221WF2 HR Series 12 Volt / 5.1 Ah @20 Hr with F2 (0.250″) Terminals and ABS Plastic Case

Loading...

Description

CSB HR1221WF2 HR Series 12 Volt / 5.1 Ah @20 Hr with F2 (0.250″) Terminals and ABS Plastic Case

Specifications
Battery Store SKU CS-HR1221WF2
Dimensions 3.54″ (L) x 2.76″ (W) x 4.02″ (H)
Dimensions (mm) 90 mm (L) x 70 mm (W) x 102 mm (H)
Weight 4.0 lbs (1.8 kgs)

Additional information

Weight 4.0 lbs
Manufacturer

CSB

price-discounts

Each (1 pieces), Box/Case (10 pieces), Pallet Layer (120 pieces), Pallet (480 pieces)

Product Line
Product Series

HR Series

Model

HR1221W

Terminal

F2 (0.250")

Terminal Layout
Case Material

ABS Plastic

UPC Code
Manufacturers Model #

HR1221WF2

Manufacturers SKU
Deprecated Model #
Applications
Voltage

12

Capacity (Nominal)

5.1 Ah @20 Hr

Capacity @20 Hr

5.1

Capacity @10 Hr
Capacity @1 Hr
Capacity @15 Min

21 W @15 Min

CCA
PHCA
Reserve Capacity
Chemistry

Lead Acid

Technology

AGM-Lead Calcium

Design Life
Service Life
Shelf Life

6

Internal Resistance
Maximum Current
Cycles @ 80% Discharge
Standby Charge Voltage

13.5 to 13.8 VDC

Cycle Charge Voltage

14.4 to 15.0 VDC

Maximum Charge Current
Operating Temp Low (°F)

5

Operating Temp High (°F)

122

Storage Temp Low (°F)

5

Storage Temp High (°F)

104

Operating Temp Low (°C)

-15

Operating Temp High (°C)

50

Storage Temp Low (°C)

-15

Storage Temp High (°C)

40

Length (In)

3.54

Width (In)

2.76

Height - Case (In)

4.02

Height - Overall (In)

4.17

Length (mm)

90

Width (mm)

70

Height - Case (mm)

102

Height - Overall (mm)

106

Weight (lb)

4.0

Weight (kg)

1.8

BCI Group

M5 Size

Manufacturers Warranty
Transportation Notes
Certifications
Qty Per Box
Qty Per Pallet
uncategorized
