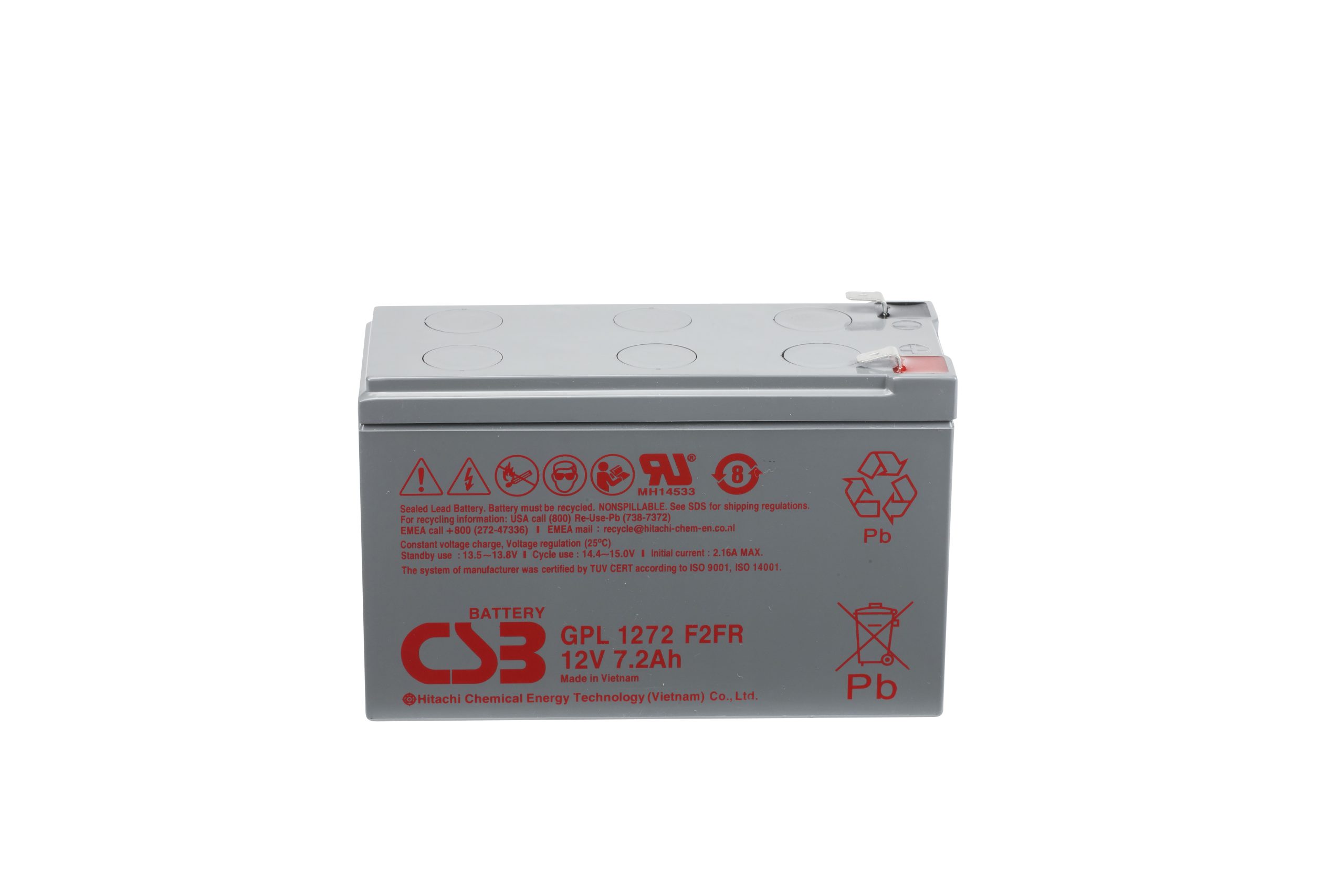

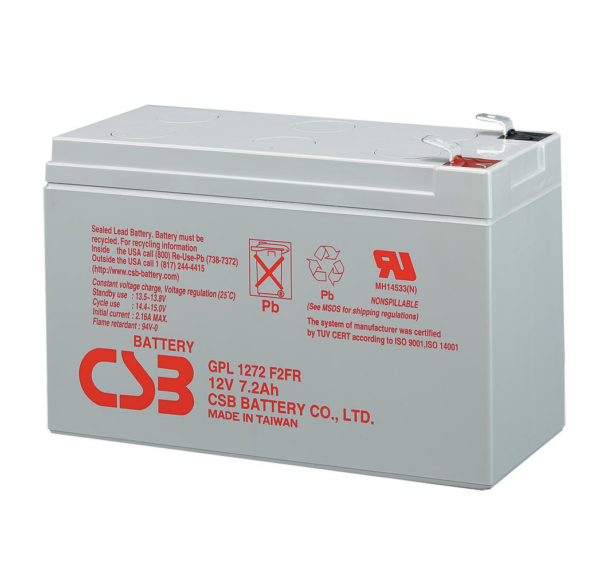

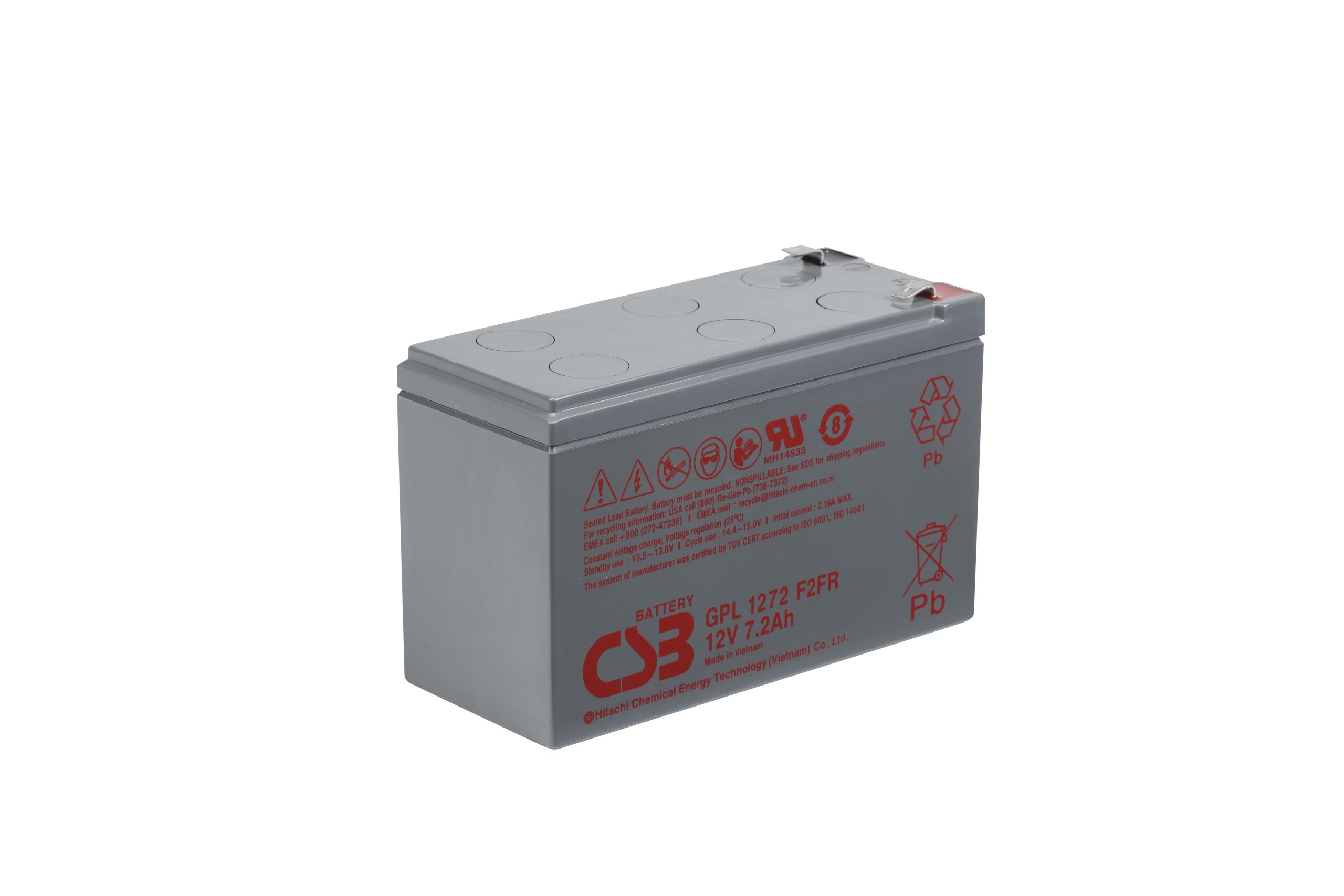

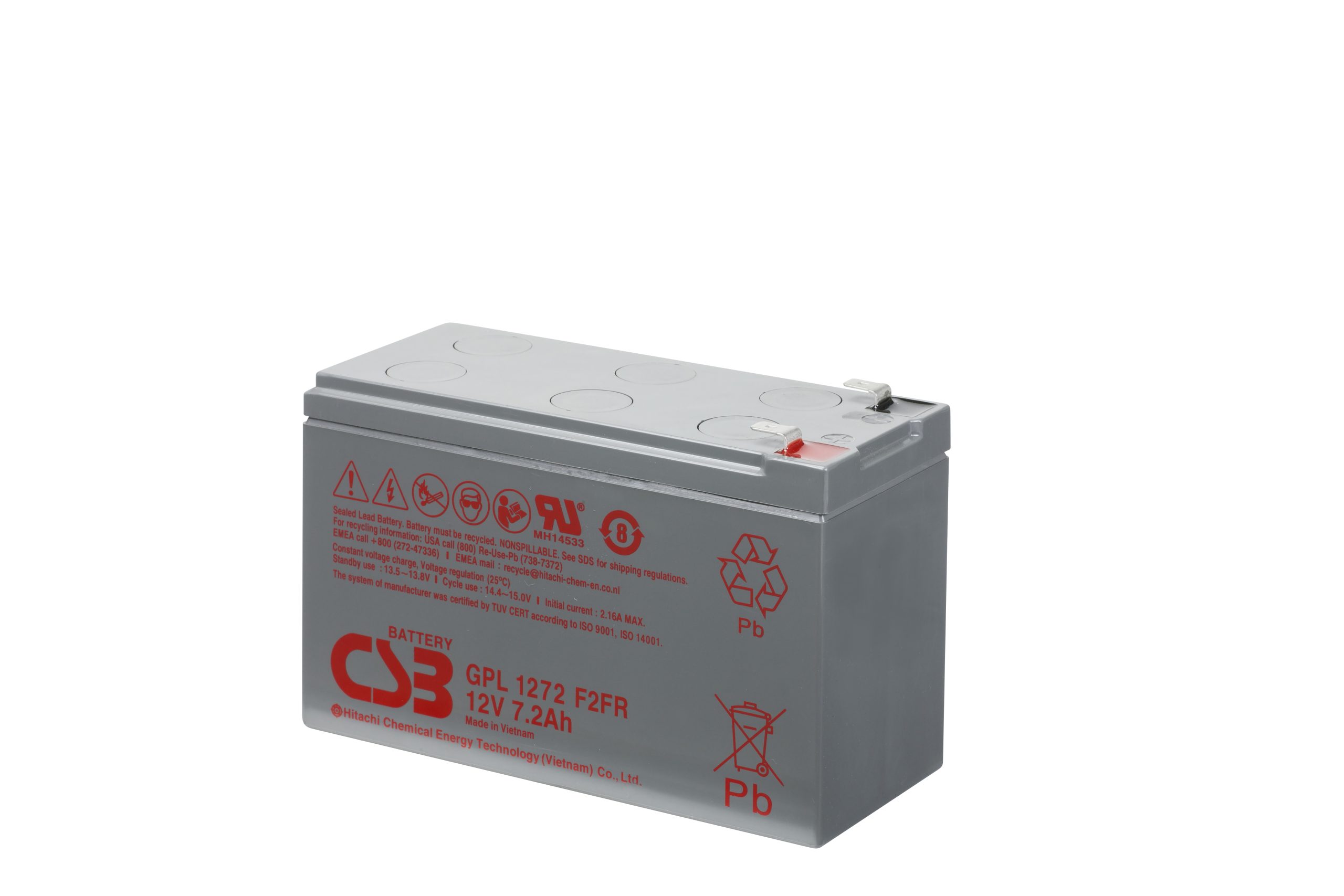

CSB GPL1272F2FR SLA (AGM) Battery
As low as $17.80 each
CSB GPL1272F2FR GPL Series 12 Volt / 8.0 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case
Loading...
Description
CSB GPL1272F2FR GPL Series 12 Volt / 8.0 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-GPL1272F2FR |
| Dimensions | 5.94″ (L) x 2.56″ (W) x 3.70″ (H) |
| Dimensions (mm) | 151 mm (L) x 65 mm (W) x 94 mm (H) |
| Weight | 5.7 lbs (2.6 kgs) |
Additional information
| Weight | 5.7 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 Pieces), Box/Case (10 Pieces), Pallet Layer (90 Pieces), Pallet (360 Pieces) |
| Product Line | |
| Product Series | GPL Series |
| Model | GPL1272 |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | Flame Retardant UL94-V0 |
| UPC Code | |
| Manufacturers Model # | GPL1272F2FR |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 8.0 Ah @20 Hr |
| Capacity @20 Hr | 8 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 5.94 |
| Width (In) | 2.56 |
| Height - Case (In) | 3.70 |
| Height - Overall (In) | 3.90 |
| Length (mm) | 151 |
| Width (mm) | 65 |
| Height - Case (mm) | 94 |
| Height - Overall (mm) | 99 |
| Weight (lb) | 5.7 |
| Weight (kg) | 2.6 |
| BCI Group | M7 Size |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
