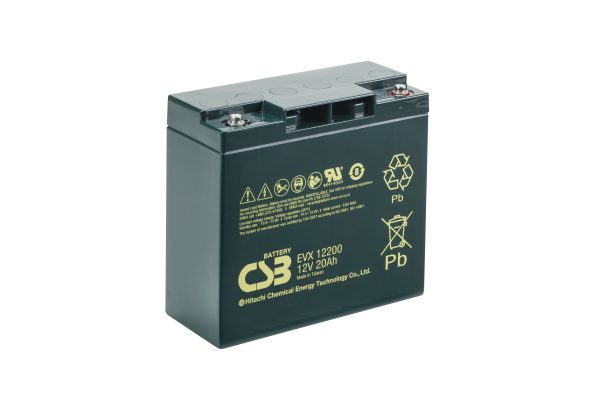

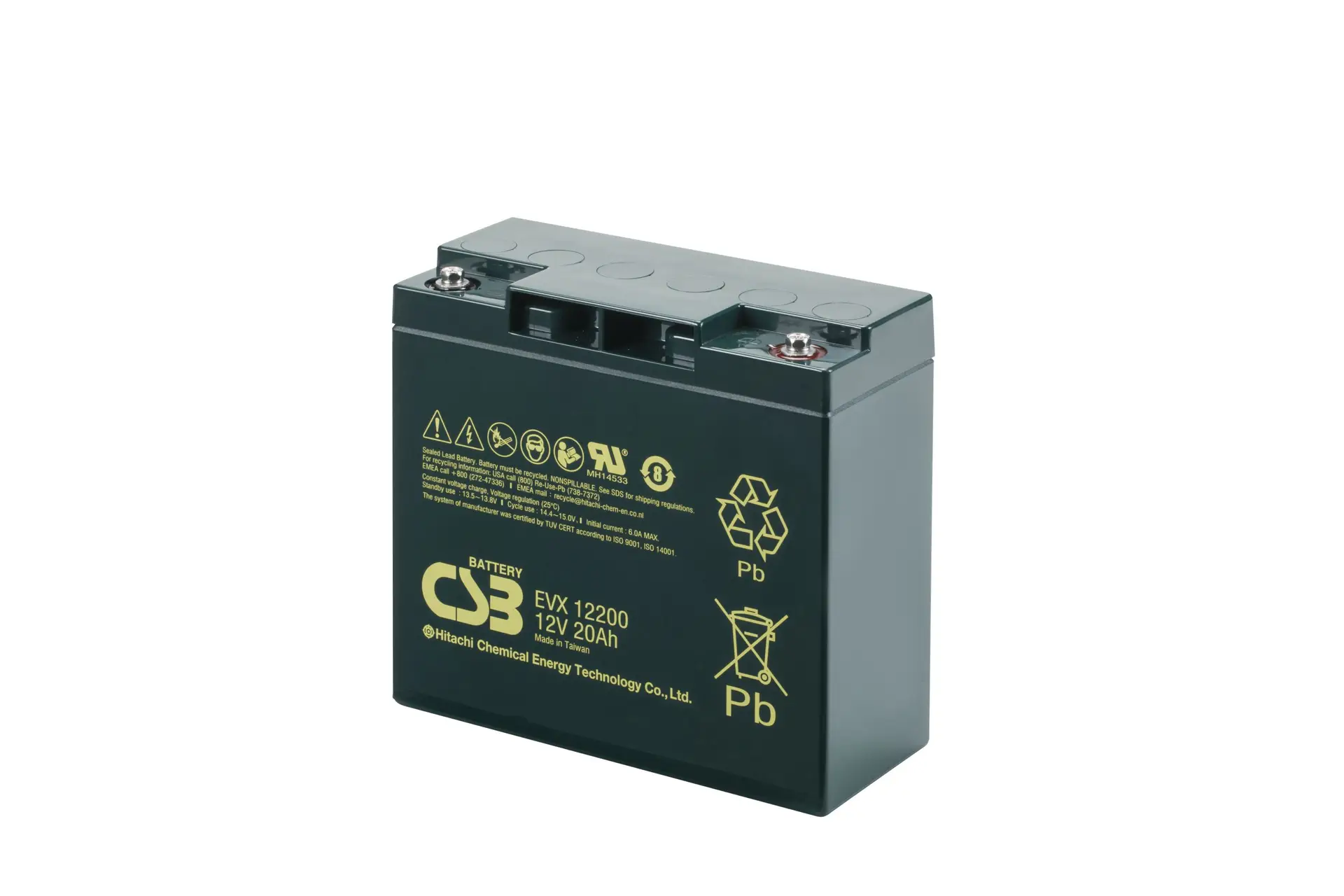

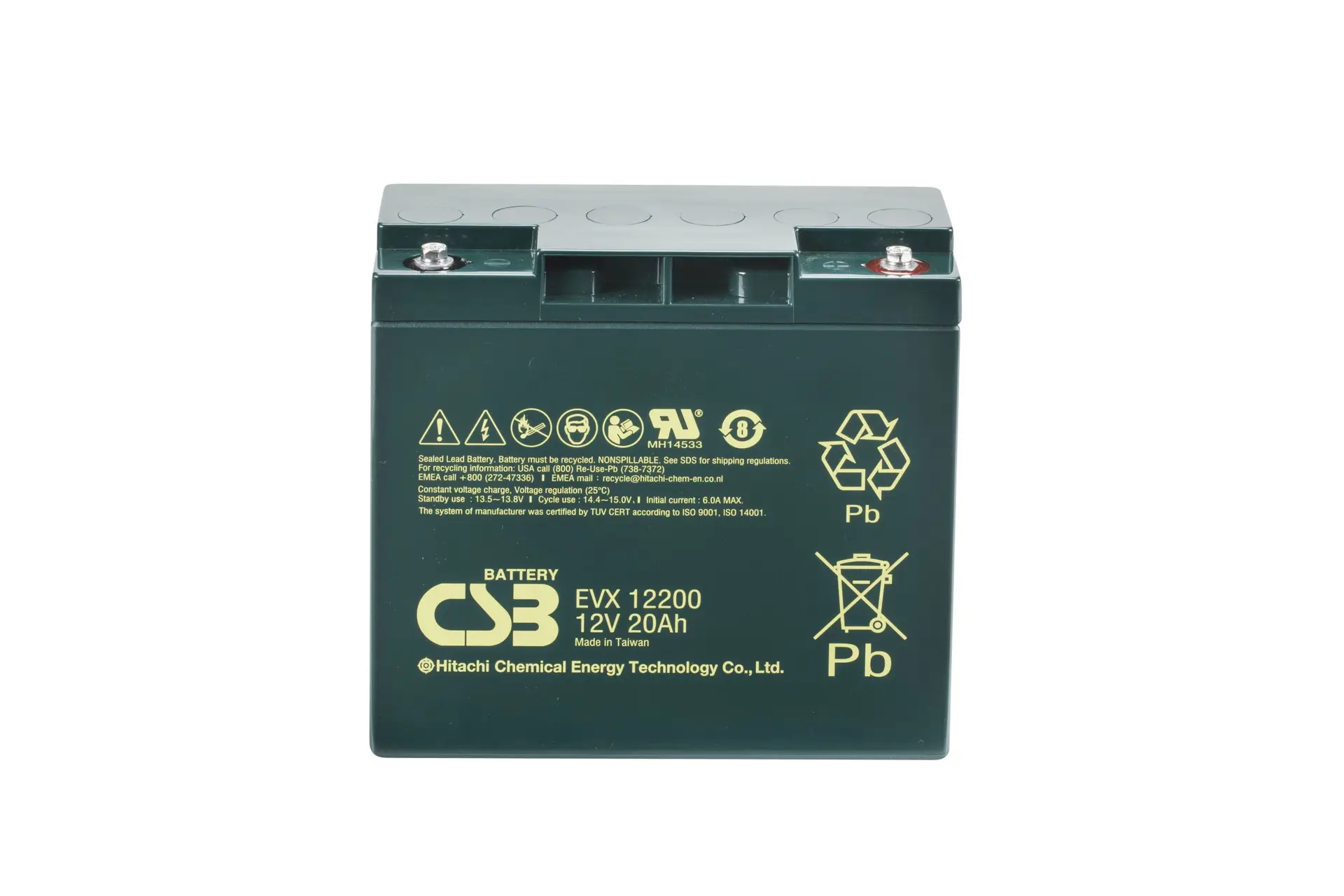

CSB EVX12200 SLA (AGM) Battery
As low as $44.94 each
CSB EVX12200 EVX Series 12 Volt / 20 Ah @20 Hr with Recessed Terminals and ABS Plastic Case
Loading...
Description
CSB EVX12200 EVX Series 12 Volt / 20 Ah @20 Hr with Recessed Terminals and ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-EVX12200R |
| Dimensions | 7.13″ (L) x 2.99″ (W) x 5.67″ (H) |
| Dimensions (mm) | 181 mm (L) x 76 mm (W) x 144 mm (H) |
| Weight | 14.7 lbs (6.7 kgs) |
Additional information
| Weight | 14.77 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | Each (1 Pieces), Box/Case (4 Pieces), Pallet Layer (56 Pieces), Pallet (168 Pieces) |
| Product Line | |
| Product Series | EVX Series |
| Model | EVX12200 |
| Terminal | Recessed |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | EVX12200 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 20 Ah @20 Hr |
| Capacity @20 Hr | 20 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | |
| Operating Temp High (°C) | |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 7.13 |
| Width (In) | 2.99 |
| Height - Case (In) | 5.67 |
| Height - Overall (In) | 5.67 |
| Length (mm) | 181 |
| Width (mm) | 76 |
| Height - Case (mm) | 144 |
| Height - Overall (mm) | 144 |
| Weight (lb) | 14.7 |
| Weight (kg) | 6.7 |
| BCI Group | M17 Size |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet | |
| uncategorized |
