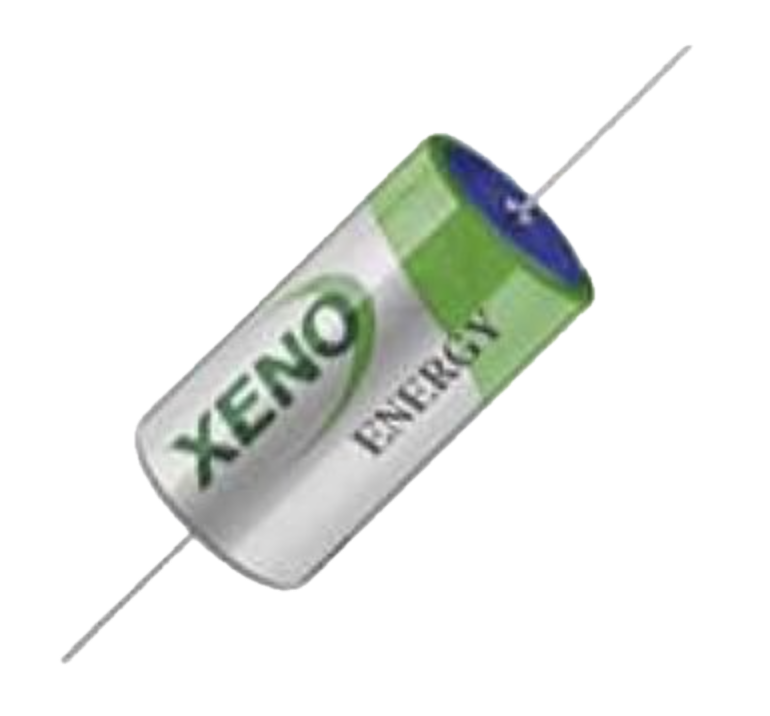

Xeno XL-145F-AX Lithium Thionyl Chloride
$10.75
Xeno XL-145F-AX Lithium Thionyl Chloride XL Series 3.6 Volt / 8.6 Ah with Axial Leads Terminals and Bobbin Cell Case
Note:Sold in packages of 42. Quantity must be in multiples of 42
Volume Pricing
| Quantity | Price Each |
|---|---|
| 42+ | $8.69 |
| 210+ | $8.15 |
| 2016+ | $7.87 |
| 10080+ | $7.33 |
Discount applied automatically in cart based on quantity.
Out of stock
Loading...
Description
Xeno XL-145F-AX Lithium Thionyl Chloride XL Series 3.6 Volt / 8.6 Ah with Axial Leads Terminals and Bobbin Cell Case
| Specifications | |
|---|---|
| Battery Store SKU | XE-XL-145F-AXWABC |
| Dimensions | 1.93″ (L) x 1.02″ (W) x ” (H) |
| Dimensions (mm) | 49 mm (L) x 25.8 mm (W) x mm (H) |
| Weight | 0.110 lbs (50 g kgs) |
Product Notes
Terminal Types STD, T1, T2, T3, T3/R, T3EU, T3EU/R, AX, CW
Additional information
| Weight | 0.110 lbs |
|---|---|
| Manufacturer | Xeno |
| Product Line | Lithium Thionyl Chloride |
| Product Series | XL Series |
| Model | XL-145F-AX |
| Terminal | Axial Leads |
| Case Material | Bobbin Cell |
| Manufacturers Model # | XL-145F-AX |
| Manufacturers SKU | XL-145F-AX |
| Voltage | 3.6 |
| Capacity (Nominal) | 8.6 Ah |
| Max Constant Current | 150 mA |
| Max Pulse Current | 230 mA |
| Chemistry | Lithium-Thionyl Chloride |
| Technology | Lithium Primary |
| Shelf Life | 10 Years |
| Operating Temp Low (°F) | -67F~+131F |
| Operating Temp High (°F) | -67F~+131F |
| Storage Temp Low (°F) | -67F~+131F |
| Storage Temp High (°F) | -67F~+131F |
| Operating Temp Low (°C) | -55~+85’C |
| Operating Temp High (°C) | -55~+85’C |
| Storage Temp Low (°C) | -55~+85’C |
| Storage Temp High (°C) | -55~+85’C |
| Length (In) | 1.93 |
| Width (In) | 1.02 |
| Length (mm) | 49 |
| Width (mm) | 25.8 |
| Weight (lb) | 0.110 |
| Weight (kg) | 50 g |
| BCI Group | C |
