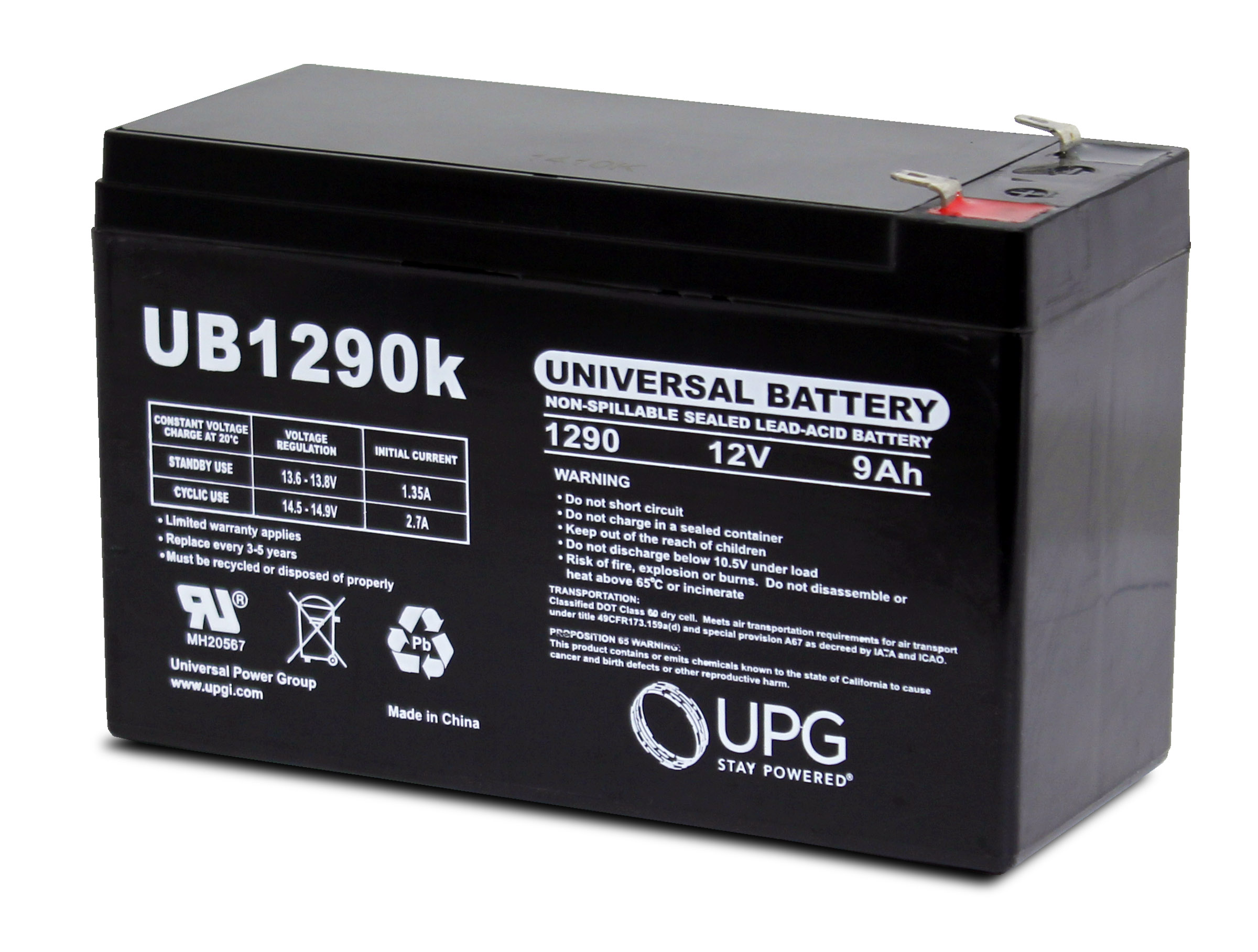

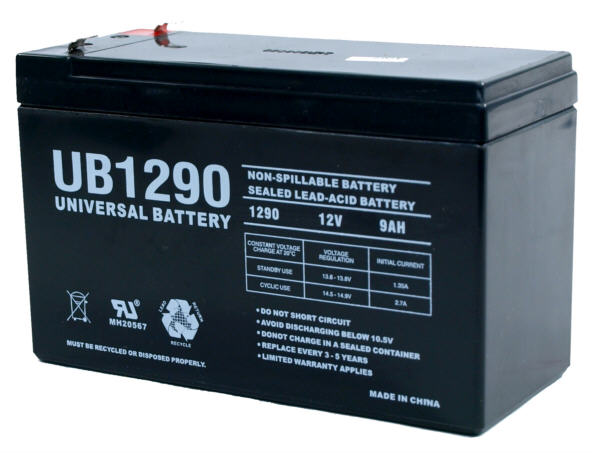

Universal Power UB1290 Lead Acid Battery
$20.00
Universal Power UB1290 UB Series 12 Volt / 9 Ah @20 Hr Lead Acid Battery with F2 (0.250″) Terminals
Out of stock
Loading...
Description
Universal Power UB1290 UB Series 12 Volt / 9 Ah @20 Hr Lead Acid Battery with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-1290F2 |
| Dimensions | ” (L) x ” (W) x ” (H) |
| Dimensions (mm) | mm (L) x mm (W) x mm (H) |
| Weight | lbs ( kgs) |
Additional information
| Weight | 5 lbs |
|---|---|
| Manufacturer | Universal Power |
| Product Line | |
| Product Series | UB Series |
| Model | UB-1290 |
| Terminal | F2 (0.250") |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB1290 |
| Manufacturers SKU | 40748 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 9 Ah @20 Hr |
| Capacity @20 Hr | 9 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 5.94 |
| Width (In) | 2.56 |
| Height - Case (In) | 4.06 |
| Height - Overall (In) | 4.06 |
| Length (mm) | 150.8 |
| Width (mm) | 65.02 |
| Height - Case (mm) | 103.1 |
| Height - Overall (mm) | 103.1 |
| Weight (lb) | 5.17 |
| Weight (kg) | 2.4 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 8 |
| Qty Per Pallet | 544 |
