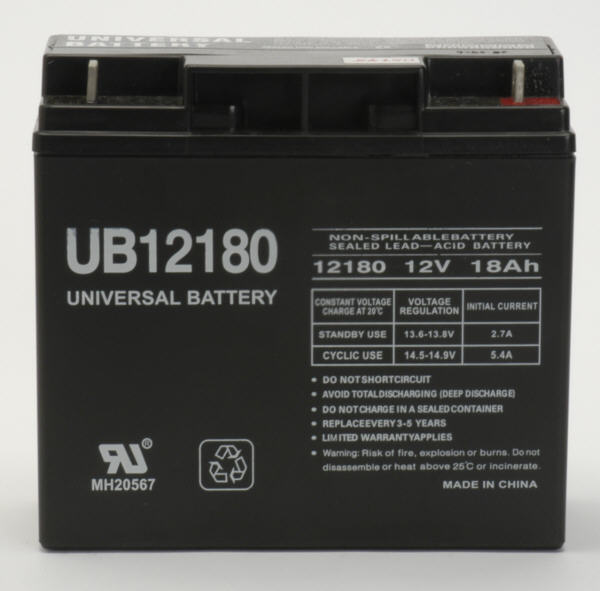

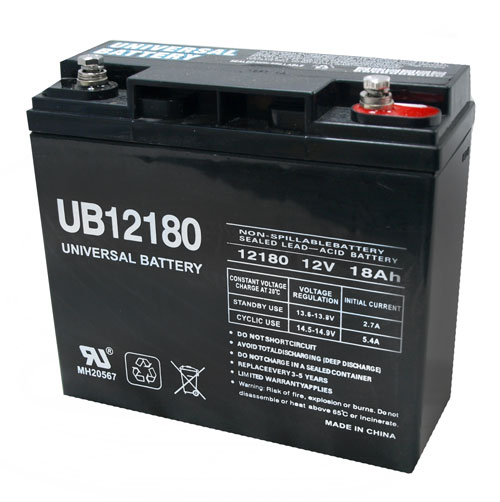

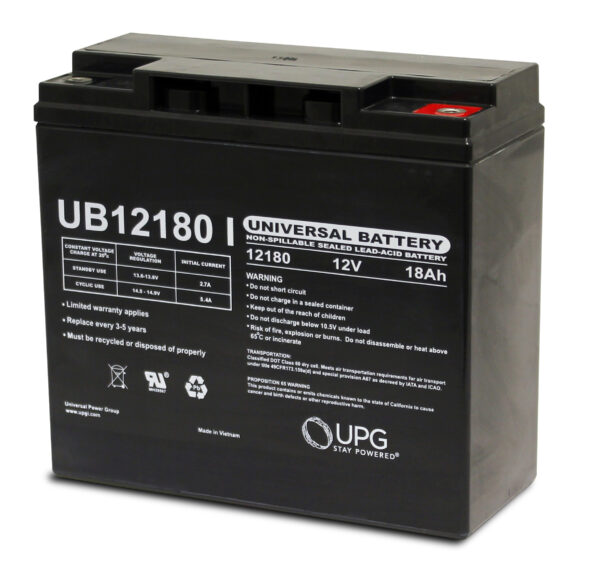

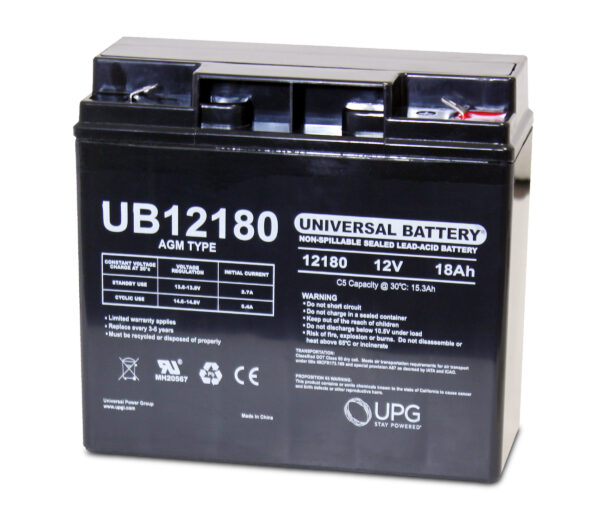

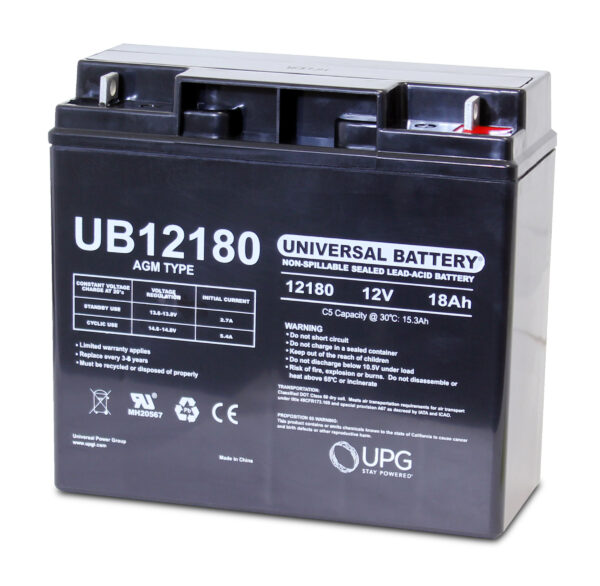

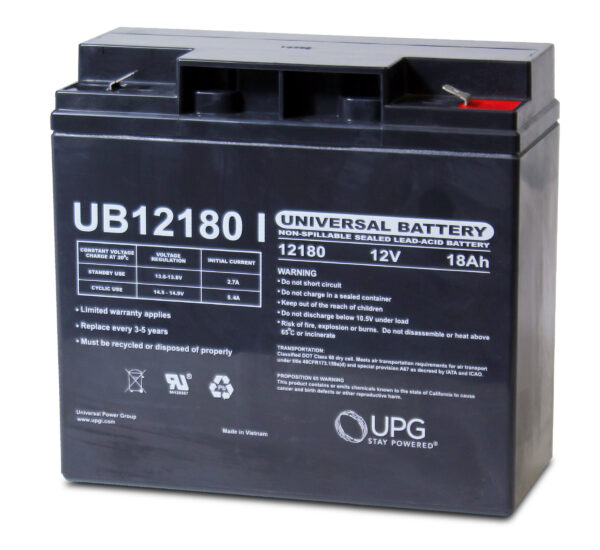

Universal Power UB12180 Lead Acid Battery
$89.30
Universal Power UB12180 UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals
Out of stock
Loading...
Description
Universal Power UB12180 UB Series 12 Volt / 18 Ah @20 Hr Lead Acid Battery with Nut & Bolt (M5) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | UB-12180NB |
| Dimensions | ” (L) x ” (W) x ” (H) |
| Dimensions (mm) | mm (L) x mm (W) x mm (H) |
| Weight | lbs ( kgs) |
Additional information
| Manufacturer | Universal Power |
|---|---|
| Product Line | |
| Product Series | UB Series |
| Model | UB-12180 |
| Terminal | Nut & Bolt (M5) |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | UB12180 |
| Manufacturers SKU | D5745 |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 18 Ah @20 Hr |
| Capacity @20 Hr | 18 |
| Capacity @10 Hr | |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | 5 Years |
| Service Life | 3 to 5 Years |
| Shelf Life | 6 |
| Internal Resistance | |
| Maximum Current | |
| Cycles @ 80% Discharge | 350 |
| Standby Charge Voltage | 13.6 – 13.8 Volts |
| Cycle Charge Voltage | 14.6 – 14.8 Volts |
| Maximum Charge Current | C/3 |
| Operating Temp Low (°F) | 32 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | 0 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 7.15 |
| Width (In) | 3.06 |
| Height - Case (In) | 6.6 |
| Height - Overall (In) | 6.6 |
| Length (mm) | 181.6 |
| Width (mm) | 77.72 |
| Height - Case (mm) | 167.6 |
| Height - Overall (mm) | 167.6 |
| Weight (lb) | 11.4 |
| Weight (kg) | 5.2 |
| BCI Group | |
| Manufacturers Warranty | 12 Months |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | 4 |
| Qty Per Pallet | 240 |
