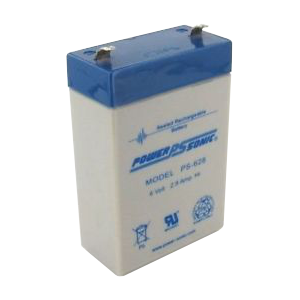

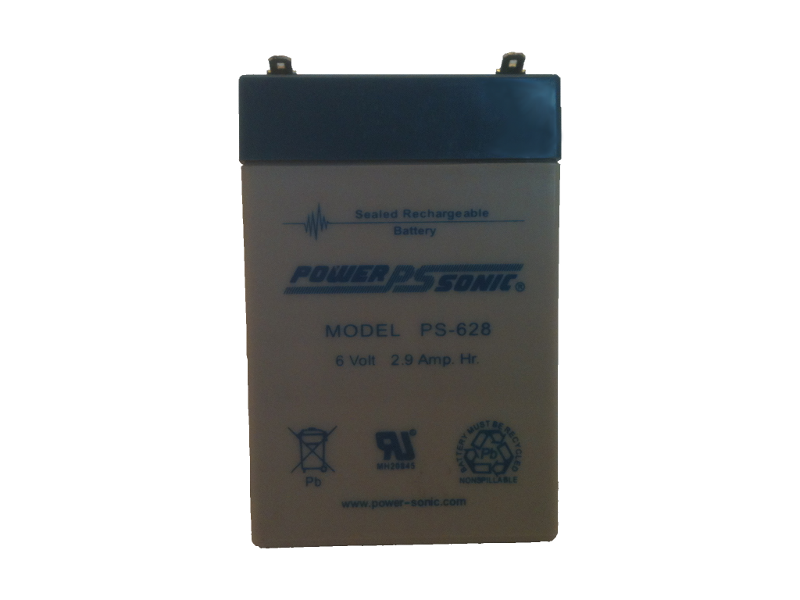

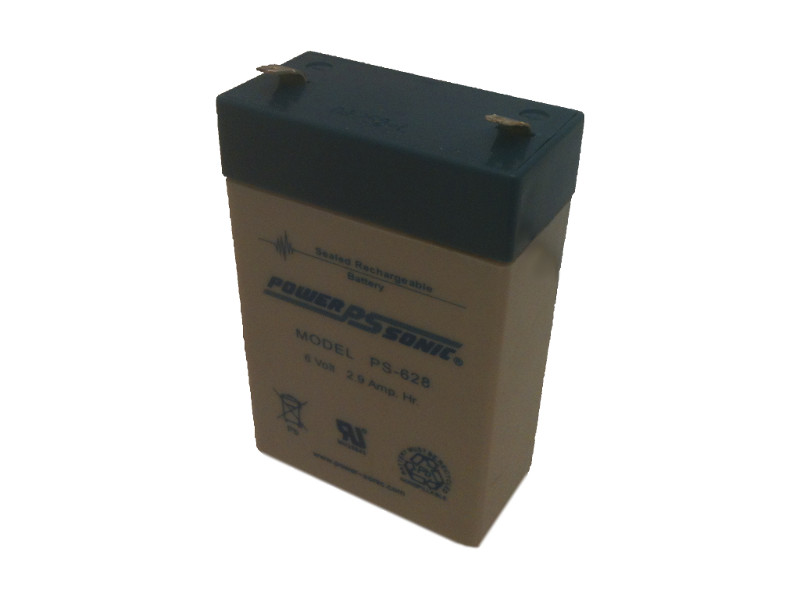

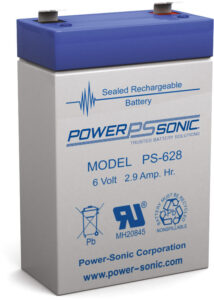

PowerSonic PS-628 Lead Acid Battery
$9.27
PowerSonic PS Series PS-628 6 Volt / 2.9 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case
Out of stock
Loading...
Description
PowerSonic PS Series PS-628 6 Volt / 2.9 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-628F1 |
| Dimensions | 2.60″ (L) x 1.30″ (W) x 3.86″ (H) |
| Dimensions (mm) | 66 mm (L) x 33 mm (W) x 98 mm (H) |
| Weight | 1.298 lbs (0.59 kgs) |
Additional information
| Weight | 1.298 lbs |
|---|---|
| Manufacturer | PowerSonic |
| Product Series | PS Series |
| Model | PS-628 |
| Terminal | F1 (0.187") |
| Case Material | ABS Plastic |
| Manufacturers Model # | PS-628 |
| Manufacturers SKU | 600282602 |
| Voltage | 6 |
| Capacity (Nominal) | 2.9 Ah @20 Hr |
| Capacity @20 Hr | 2.9 |
| Capacity @10 Hr | 2.6 |
| Capacity @1 Hr | 1.8 |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 5 Years |
| Shelf Life | 6 |
| Internal Resistance | 30 mOhm |
| Maximum Current | 29 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 2.60 |
| Width (In) | 1.30 |
| Height - Case (In) | 3.86 |
| Height - Overall (In) | 3.86 |
| Length (mm) | 66 |
| Width (mm) | 33 |
| Height - Case (mm) | 98 |
| Height - Overall (mm) | 98 |
| Weight (lb) | 1.298 |
| Weight (kg) | 0.59 |
