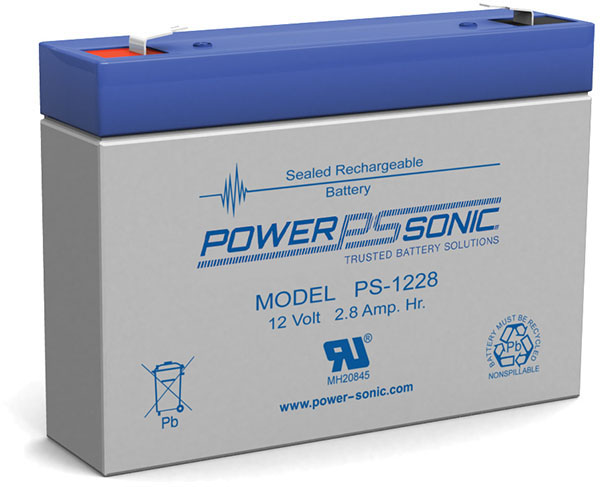

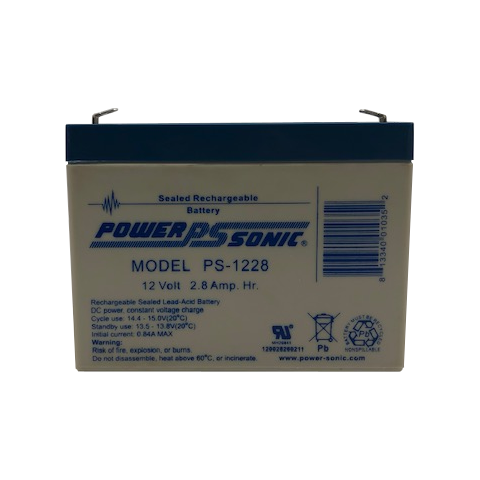

PowerSonic PS-1228 Lead Acid Battery
$17.00
PowerSonic PS Series PS-1228 12 Volt / 2.8 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case
56 in stock
Volume Pricing
| Quantity | Price Each |
|---|---|
| 1+ | $17.00 |
| 10+ | $15.00 |
| 160+ | $12.50 |
| 640+ | $12.00 |
Discount applied automatically in cart based on quantity.
Loading...
Description
PowerSonic PS Series PS-1228 12 Volt / 2.8 Ah @20 Hr Lead Acid Battery with F1 (0.187″) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-1228F1 |
| Dimensions | 5.24″ (L) x 1.30″ (W) x 3.82″ (H) |
| Dimensions (mm) | 133 mm (L) x 33 mm (W) x 97 mm (H) |
| Weight | 2.794 lbs (1.27 kgs) |
Additional information
| Weight | 2.794 lbs |
|---|---|
| Manufacturer | PowerSonic |
| Product Series | PS Series |
| Model | PS-1228 |
| Terminal | F1 (0.187") |
| Case Material | ABS Plastic |
| Manufacturers Model # | PS-1228 |
| Manufacturers SKU | 1200282602 |
| Voltage | 12 |
| Capacity (Nominal) | 2.8 Ah @20 Hr |
| Capacity @20 Hr | 2.8 |
| Capacity @10 Hr | 2.5 |
| Capacity @1 Hr | 1.7 |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 5 Years |
| Shelf Life | 6 |
| Internal Resistance | 60 mOhm |
| Maximum Current | 28.0 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 5.24 |
| Width (In) | 1.30 |
| Height - Case (In) | 3.82 |
| Height - Overall (In) | 4.09 |
| Length (mm) | 133 |
| Width (mm) | 33 |
| Height - Case (mm) | 97 |
| Height - Overall (mm) | 104 |
| Weight (lb) | 2.794 |
| Weight (kg) | 1.27 |
