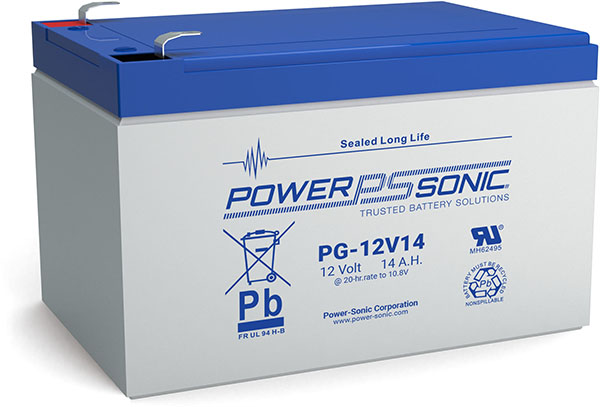

PowerSonic PG-12V14 Lead Acid Battery
PowerSonic PG Series PG-12V14 12 Volt / 14 Ah @20 Hr Lead Acid Battery with F2 (0.250″) Terminals / ABS Plastic Case
Out of stock
Loading...
Description
PowerSonic PG Series PG-12V14 12 Volt / 14 Ah @20 Hr Lead Acid Battery with F2 (0.250″) Terminals / ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | PS-PG-12V14F2 |
| Dimensions | 5.94″ (L) x 3.85″ (W) x 3.74″ (H) |
| Dimensions (mm) | 151 mm (L) x 98 mm (W) x 95 mm (H) |
| Weight | 8.93 lbs (4.05 kgs) |
Additional information
| Weight | 8.93 lbs |
|---|---|
| Manufacturer | PowerSonic |
| price-discounts | Each (1 pieces) |
| Product Series | PG Series |
| Model | PG-12V14 |
| Terminal | F2 (0.250") |
| Case Material | ABS Plastic |
| Manufacturers Model # | PG-12V14 |
| Voltage | 12 |
| Capacity (Nominal) | 14 Ah @20 Hr |
| Capacity @20 Hr | 14. |
| Capacity @10 Hr | 13 |
| Capacity @1 Hr | 8.79 |
| Chemistry | Lead Acid |
| Technology | VRLA-AGM |
| Design Life | 12 Years |
| Service Life | Up to 12 Years |
| Shelf Life | 6 |
| Internal Resistance | 14 mOhm |
| Maximum Current | 140 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.1 to 14.7 VDC |
| Maximum Charge Current | 0.25C |
| Operating Temp Low (°F) | -4 |
| Operating Temp High (°F) | 140 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -20 |
| Operating Temp High (°C) | 60 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 5.94 |
| Width (In) | 3.85 |
| Height - Case (In) | 3.74 |
| Height - Overall (In) | 3.97 |
| Length (mm) | 151 |
| Width (mm) | 98 |
| Height - Case (mm) | 95 |
| Height - Overall (mm) | 101 |
| Weight (lb) | 8.93 |
| Weight (kg) | 4.05 |
