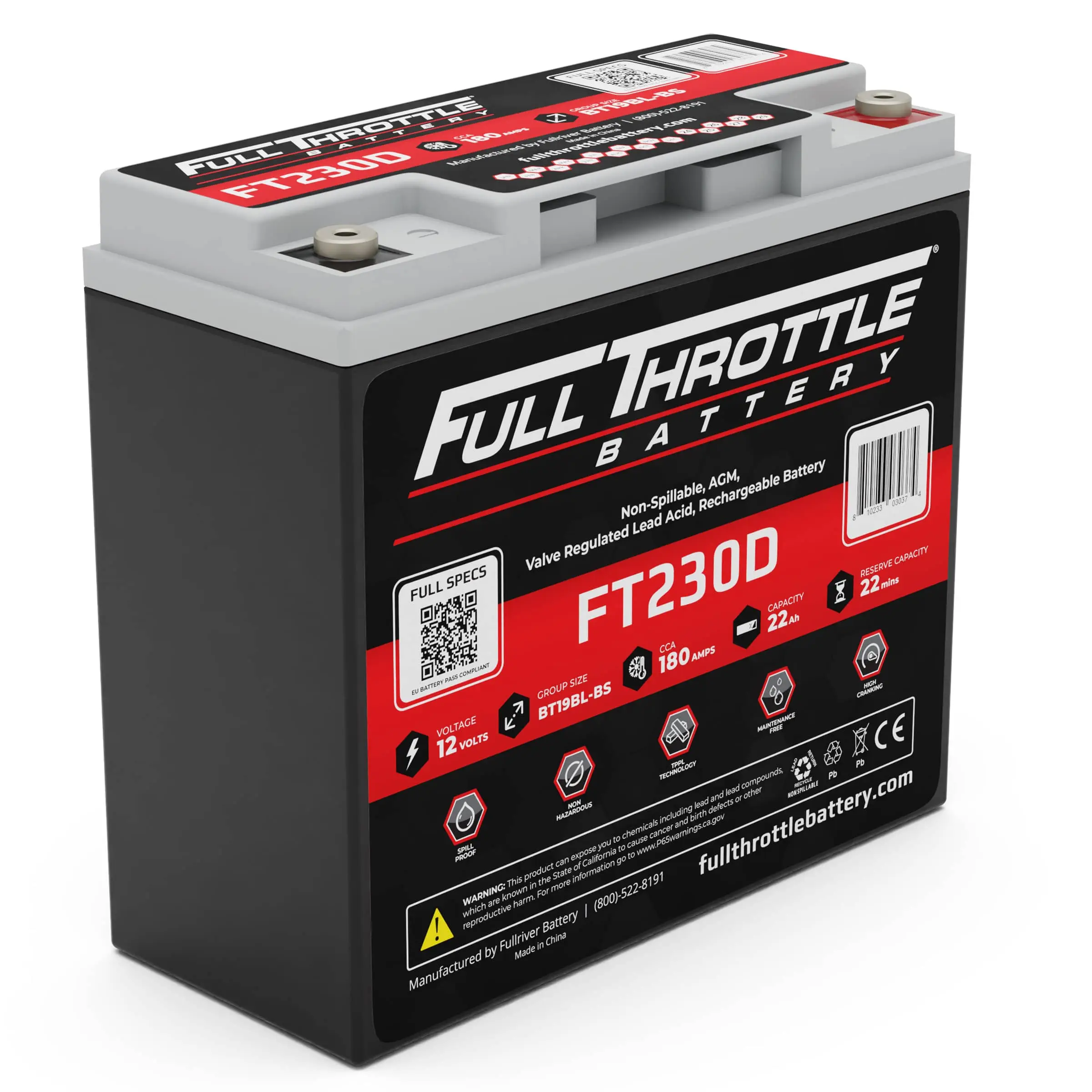

FullRiver FT230D SLA (AGM) Battery
FullRiver FT230D Lead Acid FT Series 12 Volt / 22 Ah @ 20 Hr with Recessed Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver FT230D Lead Acid FT Series 12 Volt / 22 Ah @ 20 Hr with Recessed Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-FT230D RFR |
| Dimensions | 7.13″ (L) x 3.03″ (W) x 6.57″ (H) |
| Dimensions (mm) | 181 mm (L) x 77 mm (W) x 167 mm (H) |
| Weight | 13.90 lbs (6.30 kgs) |
Additional information
| Weight | 13.90 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | FT Series |
| Model | FT230D |
| Terminal | Recessed |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | FT230D |
| Manufacturers SKU | FT230D |
| Deprecated Model # | FT230D |
| Applications | Auto, Powersports, RV, Trucking, UTV, Marine, Off-Road, Watersports, |
| Voltage | 12 |
| Capacity (Nominal) | 22 Ah @ 20 Hr |
| Capacity @20 Hr | 22 |
| CCA | 180 |
| Reserve Capacity | 25 Ah @ 22 Min |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Shelf Life | 6 |
| Internal Resistance | 11 Milli Oms |
| Maximum Current | 14.7 V |
| Cycles @ 80% Discharge | 800 |
| Standby Charge Voltage | 13.6 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 14.7 VDC |
| Maximum Charge Current | 14.7 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 7.13 |
| Width (In) | 3.03 |
| Height - Case (In) | 6.57 |
| Height - Overall (In) | 6.57 |
| Length (mm) | 181 |
| Width (mm) | 77 |
| Height - Case (mm) | 167 |
| Height - Overall (mm) | 167 |
| Weight (lb) | 13.90 |
| Weight (kg) | 6.30 |
| BCI Group | BT19BL-BS Group Size |
| Manufacturers Warranty | 2 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |
