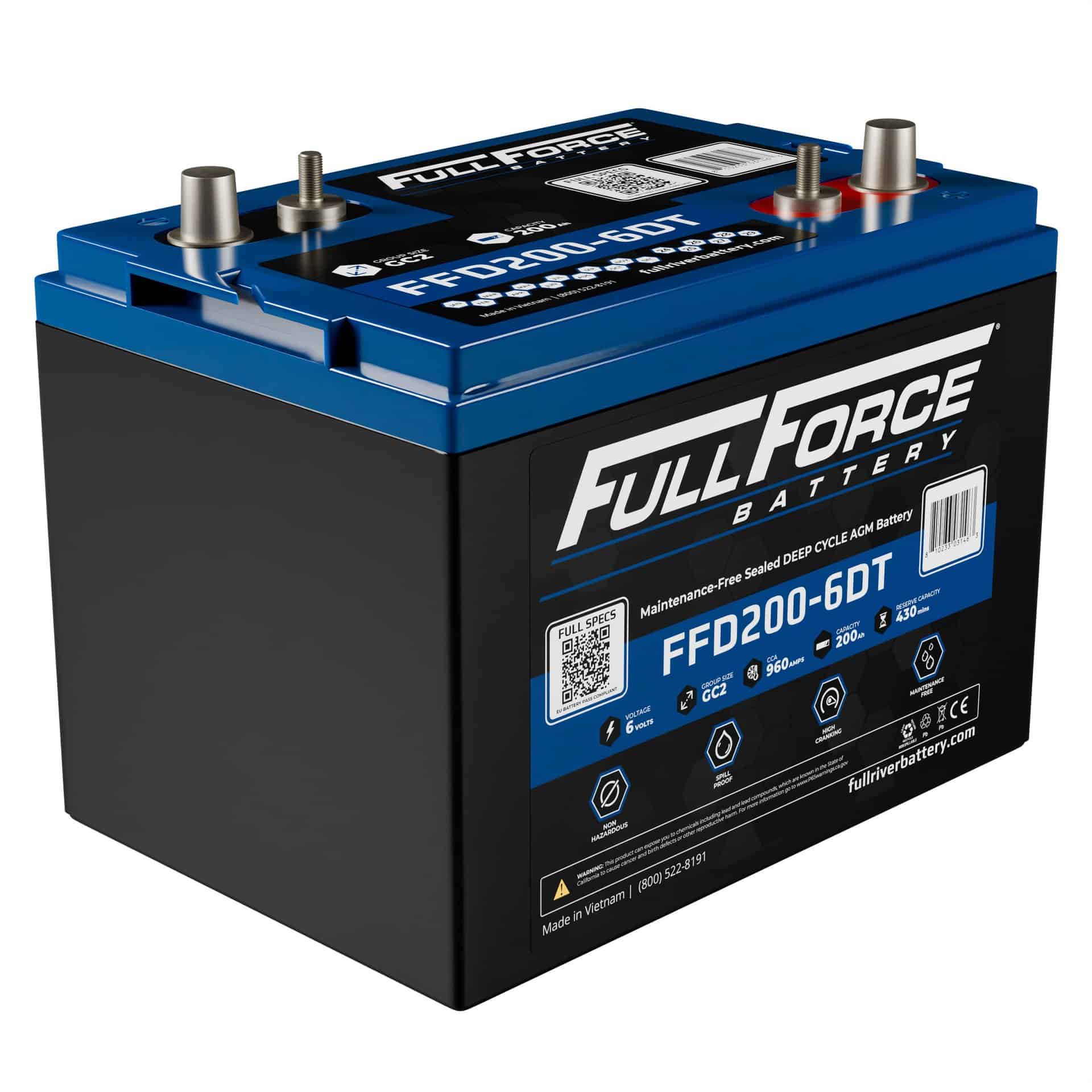

FullRiver FFD200-6DT SLA (AGM) Battery
FullRiver FFD200-6DT Lead Acid FF Series 6 Volt / 200 Ah @ 20 Hr with SAE (Removable) Recessed Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver FFD200-6DT Lead Acid FF Series 6 Volt / 200 Ah @ 20 Hr with SAE (Removable) Recessed Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-FFD200-6DTSRFR |
| Dimensions | 10.34″ (L) x 7.09″ (W) x 9.76″ (H) |
| Dimensions (mm) | 260 mm (L) x 180 mm (W) x 248 mm (H) |
| Weight | 62.70 lbs (28.40 kgs) |
Additional information
| Weight | 62.70 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | FF Series |
| Model | FFD200-6DT |
| Terminal | SAE (Removable) Recessed |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | FFD200-6DT |
| Manufacturers SKU | FFD200-6DT |
| Deprecated Model # | FFD200-6DT |
| Applications | Marine, Renewable Energy, Mobility, RV, Material Handling |
| Voltage | 6 |
| Capacity (Nominal) | 200 Ah @ 20 Hr |
| Capacity @20 Hr | 200 |
| CCA | 960 |
| Reserve Capacity | 25 Ah @ 430 Min |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Shelf Life | 6 |
| Internal Resistance | 1.8 Milli Oms |
| Maximum Current | 7.35 V |
| Cycles @ 80% Discharge | 700 |
| Standby Charge Voltage | 6.8 VDC |
| Cycle Charge Voltage | 7.35 VDC |
| Maximum Charge Current | 7.35 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 10.34 |
| Width (In) | 7.09 |
| Height - Case (In) | 9.76 |
| Height - Overall (In) | 10.59 |
| Length (mm) | 260 |
| Width (mm) | 180 |
| Height - Case (mm) | 248 |
| Height - Overall (mm) | 269 |
| Weight (lb) | 62.70 |
| Weight (kg) | 28.40 |
| BCI Group | GC2 Group Size |
| Manufacturers Warranty | 4 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |
