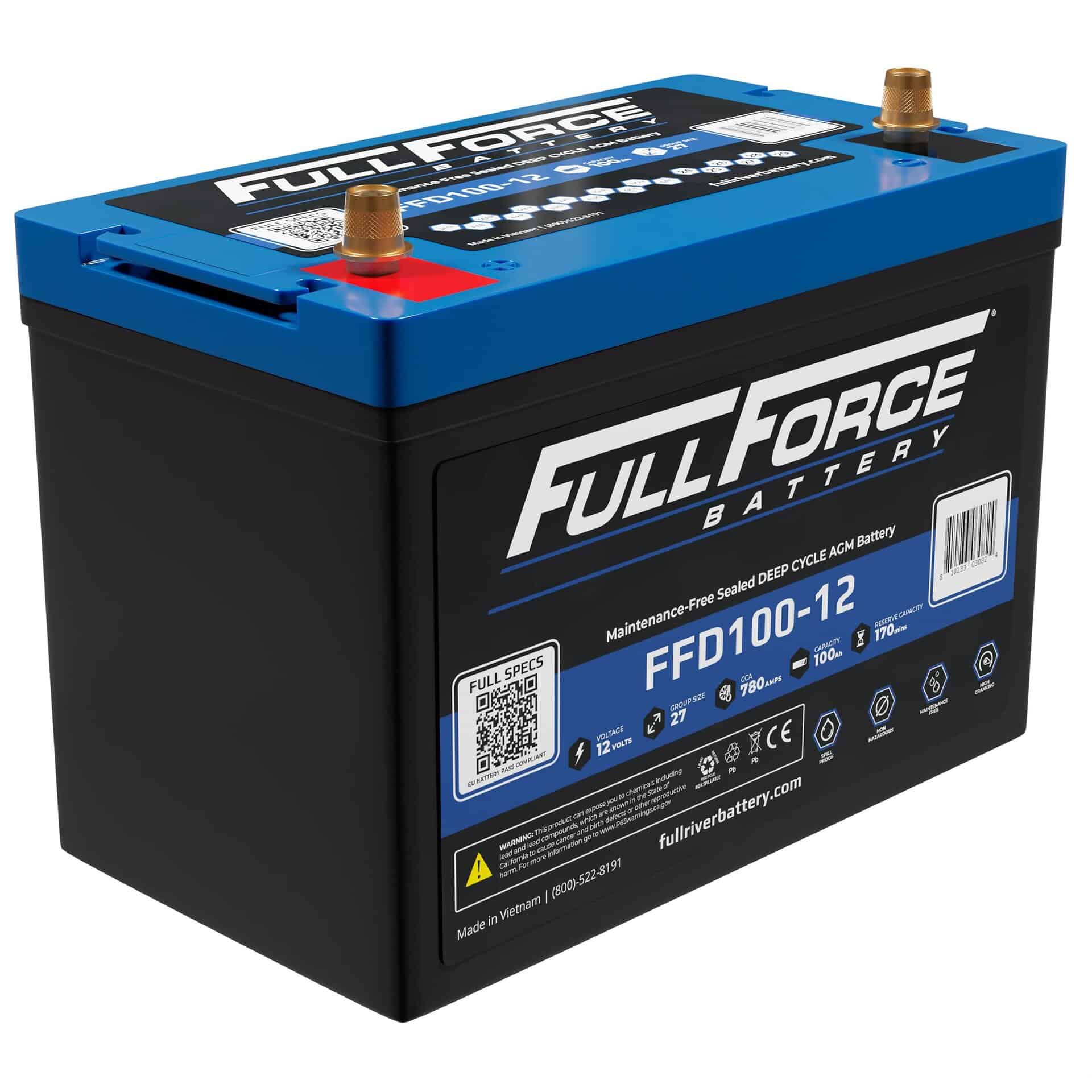

FullRiver FFD100-12 SLA (AGM) Battery
FullRiver FFD100-12 Lead Acid FF Series 12 Volt / 100 Ah @ 20 Hr with Marine Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver FFD100-12 Lead Acid FF Series 12 Volt / 100 Ah @ 20 Hr with Marine Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-FFD100-12SMFR |
| Dimensions | 12.13″ (L) x 6.61″ (W) x 8.31″ (H) |
| Dimensions (mm) | 308 mm (L) x 168 mm (W) x 211 mm (H) |
| Weight | 61.30 lbs (27.80 kgs) |
Additional information
| Weight | 61.30 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | FF Series |
| Model | FFD100-12 |
| Terminal | Marine |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | FFD100-12 |
| Manufacturers SKU | FFD100-12 |
| Deprecated Model # | FFD100-12 |
| Applications | Marine, Renewable Energy, Mobility, RV, Material Handling |
| Voltage | 12 |
| Capacity (Nominal) | 100 Ah @ 20 Hr |
| Capacity @20 Hr | 100 |
| CCA | 650 |
| Reserve Capacity | 25 Ah @ 170 Min |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Shelf Life | 6 |
| Internal Resistance | 5.0 Milli Oms |
| Maximum Current | 14.7 V |
| Cycles @ 80% Discharge | 800 |
| Standby Charge Voltage | 13.6 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 14.7 VDC |
| Maximum Charge Current | 14.7 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 12.13 |
| Width (In) | 6.61 |
| Height - Case (In) | 8.31 |
| Height - Overall (In) | 9.33 |
| Length (mm) | 308 |
| Width (mm) | 168 |
| Height - Case (mm) | 211 |
| Height - Overall (mm) | 237 |
| Weight (lb) | 61.30 |
| Weight (kg) | 27.80 |
| BCI Group | 27 Group Size |
| Manufacturers Warranty | 1 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |
