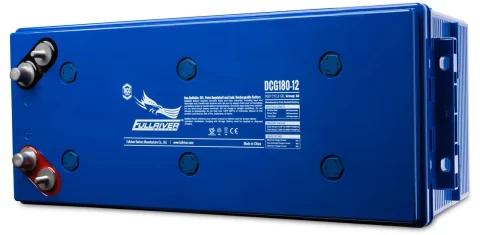

FullRiver DCG180-12 SLA (AGM) Battery
FullRiver DCG180-12 Lead Acid DCG Series 12 Volt / 180 Ah @ 20 Hr with Marine Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver DCG180-12 Lead Acid DCG Series 12 Volt / 180 Ah @ 20 Hr with Marine Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-DCG180-12SMFR |
| Dimensions | 20.75″ (L) x 8.82″ (W) x 9.21″ (H) |
| Dimensions (mm) | 527 mm (L) x 224 mm (W) x 234 mm (H) |
| Weight | 138.00 lbs (62.60 kgs) |
Additional information
| Weight | 138.00 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | DCG Series |
| Model | DCG180-12 |
| Terminal | Marine |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | DCG180-12 |
| Manufacturers SKU | DCG180-12 |
| Deprecated Model # | DCG180-12 |
| Applications | Marine, Renewable Energy, Mobility, RV, Material Handling |
| Voltage | 12 |
| Capacity (Nominal) | 180 Ah @ 20 Hr |
| Capacity @20 Hr | 180 |
| Reserve Capacity | 25 Ah @ 401 Min |
| Chemistry | Lead Acid Gel |
| Technology | Gel |
| Shelf Life | 6 |
| Internal Resistance | 2.8 Milli Oms |
| Maximum Current | 14.7 V |
| Cycles @ 80% Discharge | 800 |
| Standby Charge Voltage | 13.6 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 14.7 VDC |
| Maximum Charge Current | 14.7 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 20.75 |
| Width (In) | 8.82 |
| Height - Case (In) | 9.21 |
| Height - Overall (In) | 9.40 |
| Length (mm) | 527 |
| Width (mm) | 224 |
| Height - Case (mm) | 234 |
| Height - Overall (mm) | 239 |
| Weight (lb) | 138.00 |
| Weight (kg) | 62.60 |
| BCI Group | 4D Group Size |
| Manufacturers Warranty | 1 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |

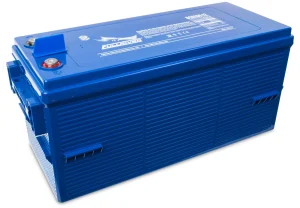

Similar Products from this Brand
