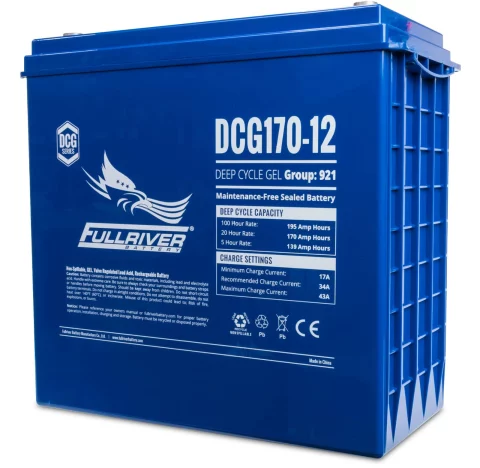

FullRiver DCG170-12 SLA (AGM) Battery
FullRiver DCG170-12 Lead Acid DCG Series 12 Volt / 170 Ah @ 20 Hr with Recessed Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver DCG170-12 Lead Acid DCG Series 12 Volt / 170 Ah @ 20 Hr with Recessed Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-DCG170-12RFR |
| Dimensions | 15.00″ (L) x 7.01″ (W) x 13.09″ (H) |
| Dimensions (mm) | 381 mm (L) x 178 mm (W) x 352 mm (H) |
| Weight | 126.50 lbs (57.40 kgs) |
Additional information
| Weight | 126.50 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | DCG Series |
| Model | DCG170-12 |
| Terminal | Recessed |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | DCG170-12 |
| Manufacturers SKU | DCG170-12 |
| Deprecated Model # | DCG170-12 |
| Applications | Marine, Renewable Energy, Mobility, RV, Material Handling |
| Voltage | 12 |
| Capacity (Nominal) | 170 Ah @ 20 Hr |
| Capacity @20 Hr | 170 |
| Reserve Capacity | 25 Ah @ 350 Min |
| Chemistry | Lead Acid Gel |
| Technology | Gel |
| Shelf Life | 6 |
| Internal Resistance | 5.3 Milli Oms |
| Maximum Current | 14.7 V |
| Cycles @ 80% Discharge | 800 |
| Standby Charge Voltage | 13.6 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 14.7 VDC |
| Maximum Charge Current | 14.7 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 15.00 |
| Width (In) | 7.01 |
| Height - Case (In) | 13.09 |
| Height - Overall (In) | 13.89 |
| Length (mm) | 381 |
| Width (mm) | 178 |
| Height - Case (mm) | 352 |
| Height - Overall (mm) | 358 |
| Weight (lb) | 126.50 |
| Weight (kg) | 57.40 |
| BCI Group | 921 Group Size |
| Manufacturers Warranty | 1 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |
