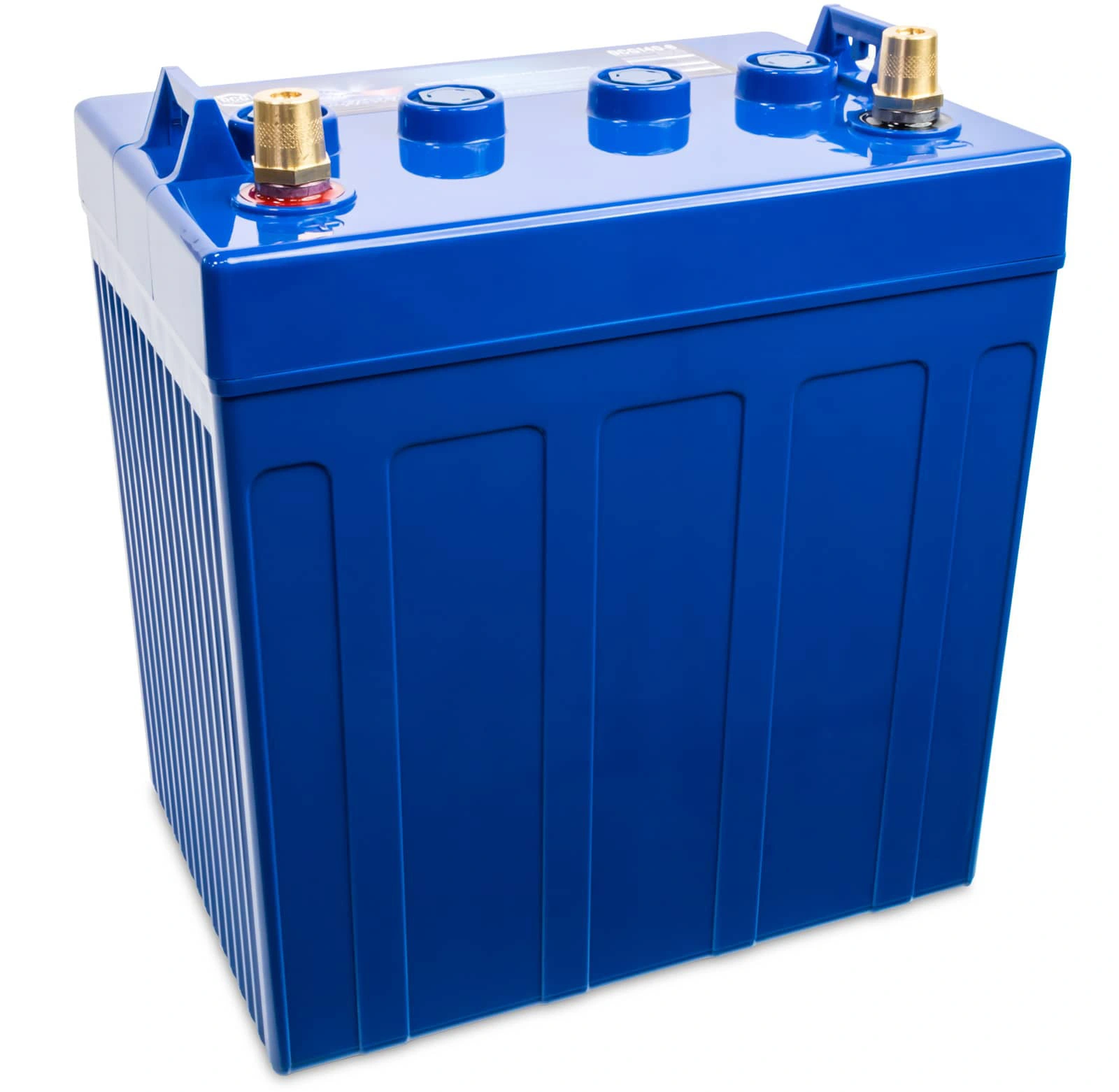

FullRiver DCG140-8 SLA (AGM) Battery
FullRiver DCG140-8 Lead Acid DCG Series 8 Volt / 140 Ah @ 20 Hr with SAE (Removable) Recessed Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver DCG140-8 Lead Acid DCG Series 8 Volt / 140 Ah @ 20 Hr with SAE (Removable) Recessed Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-DCG140-8SRFR |
| Dimensions | 10.24″ (L) x 7.17″ (W) x 10.55″ (H) |
| Dimensions (mm) | 260 mm (L) x 182 mm (W) x 268 mm (H) |
| Weight | 64.80 lbs (29.40 kgs) |
Additional information
| Weight | 64.80 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | DCG Series |
| Model | DCG140-8 |
| Terminal | SAE (Removable) Recessed |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | DCG140-8 |
| Manufacturers SKU | DCG140-8 |
| Deprecated Model # | DCG140-8 |
| Applications | Marine, Renewable Energy, Mobility, RV, Material Handling |
| Voltage | 8 |
| Capacity (Nominal) | 140 Ah @ 20 Hr |
| Capacity @20 Hr | 140 |
| Reserve Capacity | 25 Ah @ 268 Min |
| Chemistry | Lead Acid Gel |
| Technology | Gel |
| Shelf Life | 6 |
| Internal Resistance | 2.7 Milli Oms |
| Maximum Current | 14.7 V |
| Cycles @ 80% Discharge | 800 |
| Standby Charge Voltage | 13.6 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 14.7 VDC |
| Maximum Charge Current | 14.7 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 10.24 |
| Width (In) | 7.17 |
| Height - Case (In) | 10.55 |
| Height - Overall (In) | 10.71 |
| Length (mm) | 260 |
| Width (mm) | 182 |
| Height - Case (mm) | 268 |
| Height - Overall (mm) | 272 |
| Weight (lb) | 64.80 |
| Weight (kg) | 29.40 |
| BCI Group | GC8 Group Size |
| Manufacturers Warranty | 1 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |
