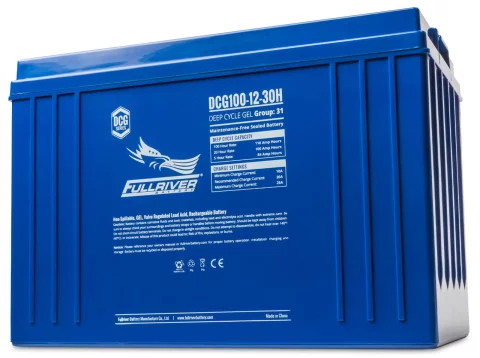

FullRiver DCG100-12-30H SLA (AGM) Battery
FullRiver DCG100-12-30H Lead Acid DCG Series 12 Volt / 100 Ah @ 20 Hr with Recessed Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver DCG100-12-30H Lead Acid DCG Series 12 Volt / 100 Ah @ 20 Hr with Recessed Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-DCG100-12-30HRFR |
| Dimensions | 12.95″ (L) x 6.73″ (W) x 8.93″ (H) |
| Dimensions (mm) | 329 mm (L) x 171 mm (W) x 227 mm (H) |
| Weight | 69.90 lbs (31.70 kgs) |
Additional information
| Weight | 69.90 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | DCG Series |
| Model | DCG100-12-30H |
| Terminal | Recessed |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | DCG100-12-30H |
| Manufacturers SKU | DCG100-12-30H |
| Deprecated Model # | DCG100-12-30H |
| Applications | Marine, Renewable Energy, Mobility, RV, Material Handling |
| Voltage | 12 |
| Capacity (Nominal) | 100 Ah @ 20 Hr |
| Capacity @20 Hr | 100 |
| Reserve Capacity | 25 Ah @ 171 Min |
| Chemistry | Lead Acid Gel |
| Technology | Gel |
| Shelf Life | 6 |
| Internal Resistance | 5.1 Milli Oms |
| Maximum Current | 14.7 V |
| Cycles @ 80% Discharge | 800 |
| Standby Charge Voltage | 13.6 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 14.7 VDC |
| Maximum Charge Current | 14.7 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 12.95 |
| Width (In) | 6.73 |
| Height - Case (In) | 8.93 |
| Height - Overall (In) | 9.72 |
| Length (mm) | 329 |
| Width (mm) | 171 |
| Height - Case (mm) | 227 |
| Height - Overall (mm) | 247 |
| Weight (lb) | 69.90 |
| Weight (kg) | 31.70 |
| BCI Group | 31 Group Size |
| Manufacturers Warranty | 1 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |
