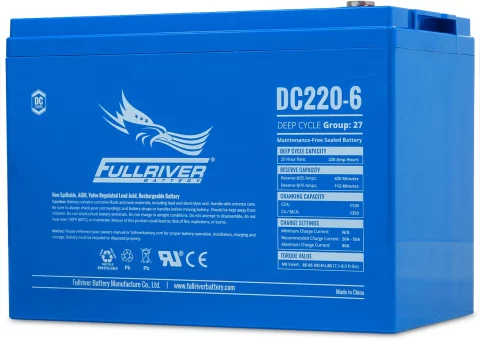

FullRiver DC220-6 SLA (AGM) Battery
FullRiver DC220-6 Lead Acid DC Series 6 Volt / 220 Ah @ 20 Hr with Recessed Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver DC220-6 Lead Acid DC Series 6 Volt / 220 Ah @ 20 Hr with Recessed Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-DC220-6RFR |
| Dimensions | 12.05″ (L) x 6.85″ (W) x 8.66″ (H) |
| Dimensions (mm) | 306 mm (L) x 174 mm (W) x 220 mm (H) |
| Weight | 72.09 lbs (32.70 kgs) |
Additional information
| Weight | 72.09 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | DC Series |
| Model | DC220-6 |
| Terminal | Recessed |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | DC220-6 |
| Manufacturers SKU | DC220-6 |
| Deprecated Model # | DC220-6 |
| Applications | Renewable, Golf Carts EV Floor Machines, Marine, Back-up AWP, RV Mobility Trucking, Oil $ gas, |
| Voltage | 6 |
| Capacity (Nominal) | 220 Ah @ 20 Hr |
| Capacity @20 Hr | 220 |
| CCA | 990 |
| Reserve Capacity | 25 Ah @ 425 Min |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Shelf Life | 6 |
| Internal Resistance | 1.5 Milli Oms |
| Maximum Current | 7.35 V |
| Cycles @ 80% Discharge | 700 |
| Standby Charge Voltage | 6.8 VDC |
| Cycle Charge Voltage | 7.35 VDC |
| Maximum Charge Current | 7.35 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 12.05 |
| Width (In) | 6.85 |
| Height - Case (In) | 8.66 |
| Height - Overall (In) | 8.90 |
| Length (mm) | 306 |
| Width (mm) | 174 |
| Height - Case (mm) | 220 |
| Height - Overall (mm) | 226 |
| Weight (lb) | 72.09 |
| Weight (kg) | 32.70 |
| BCI Group | 27 Group Size |
| Manufacturers Warranty | 2 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |
