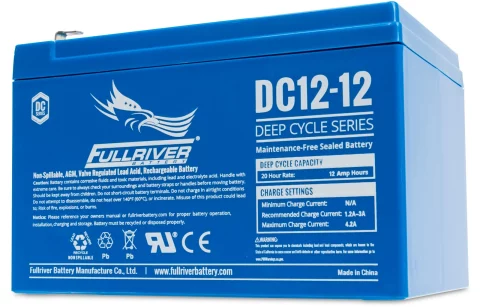

FullRiver DC12-12 SLA (AGM) Battery
FullRiver DC12-12 Lead Acid DC Series 12 Volt / 12 Ah @ 20 Hr with F1 (0.187″) Terminals and Flame Retardant ABS Plastic Case
Out of stock
Loading...
Description
FullRiver DC12-12 Lead Acid DC Series 12 Volt / 12 Ah @ 20 Hr with F1 (0.187″) Terminals and Flame Retardant ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | FR-DC12-12F1FR |
| Dimensions | 5.94″ (L) x 3.90″ (W) x 3.74″ (H) |
| Dimensions (mm) | 151 mm (L) x 99 mm (W) x 95 mm (H) |
| Weight | 9.26 lbs (4.20 kgs) |
Additional information
| Weight | 9.26 lbs |
|---|---|
| Manufacturer | FullRiver |
| Product Line | Lead Acid |
| Product Series | DC Series |
| Model | DC12-12 |
| Terminal | F1 (0.187") |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | DC12-12 |
| Manufacturers SKU | DC12-12 |
| Deprecated Model # | DC12-12 |
| Applications | Renewable, Golf Carts EV Floor Machines, Marine, Back-up AWP, RV Mobility Trucking, Oil $ gas, |
| Voltage | 12 |
| Capacity (Nominal) | 12 Ah @ 20 Hr |
| Capacity @20 Hr | 12 |
| Reserve Capacity | 25 Ah @ – Min |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Shelf Life | 6 |
| Internal Resistance | 14 Milli Oms |
| Maximum Current | 14.7 V |
| Cycles @ 80% Discharge | 800 |
| Standby Charge Voltage | 13.6 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 14.7 VDC |
| Maximum Charge Current | 14.7 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 104 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 122 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 40 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 50 |
| Length (In) | 5.94 |
| Width (In) | 3.90 |
| Height - Case (In) | 3.74 |
| Height - Overall (In) | 3.98 |
| Length (mm) | 151 |
| Width (mm) | 99 |
| Height - Case (mm) | 95 |
| Height - Overall (mm) | 101 |
| Weight (lb) | 9.26 |
| Weight (kg) | 4.20 |
| BCI Group | – |
| Manufacturers Warranty | 2 Year |
| Transportation Notes | 49 CFR Section 173.159(D) |
