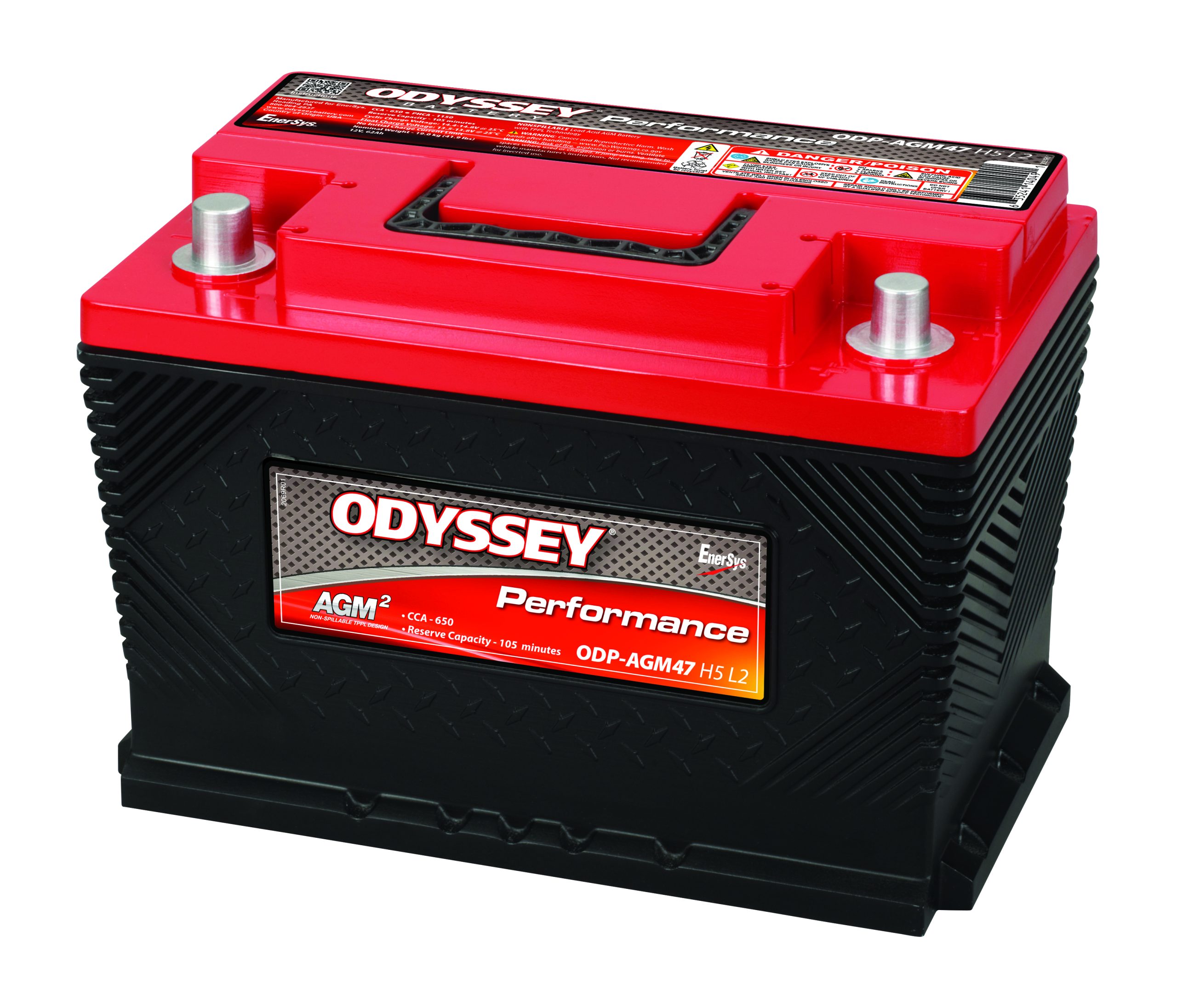

EnerSys Odyssey ODP-AGM47H5L2 Lead Acid (AGM-TPPL) Battery
$391.65
EnerSys Odyssey Performance Series ODP-AGM47H5L2 12 Volt / 650 CCA with SAE Post Terminals
Out of stock
Loading...
Description
EnerSys Odyssey Performance Series ODP-AGM47H5L2 12 Volt / 650 CCA with SAE Post Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-ODP-AGM47H5L2SA |
| Dimensions | 9.5″ (L) x 6.9″ (W) x 7.5″ (H) |
| Dimensions (mm) | 242 mm (L) x 175 mm (W) x 190 mm (H) |
| Weight | 42 lbs (19 kgs) |
Additional information
| Weight | 42 lbs |
|---|---|
| Manufacturer | EnerSys |
| Product Line | Odyssey |
| Product Series | Performance Series |
| Model | ODP-AGM47H5L2 |
| Terminal | SAE Post |
| Case Material | ABS Plastic |
| Manufacturers Model # | ODP-AGM47H5L2 |
| Deprecated Model # | 47-650 LN2-H5 |
| Voltage | 12 |
| Capacity (Nominal) | 650 CCA |
| Capacity @20 Hr | 64 |
| CCA | 650 |
| PHCA | 1150 |
| Reserve Capacity | 105 |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Design Life | 8-12 Years |
| Service Life | 3-10 years |
| Shelf Life | 24 Months |
| Cycles @ 80% Discharge | 400 |
| Standby Charge Voltage | 13.6 Volts |
| Cycle Charge Voltage | 14.7 Volts |
| Maximum Charge Current | 3.1C |
| Operating Temp Low (°F) | -40 |
| Operating Temp High (°F) | 176 |
| Operating Temp Low (°C) | -40 |
| Operating Temp High (°C) | 80 |
| Length (In) | 9.5 |
| Width (In) | 6.9 |
| Height - Case (In) | 7.5 |
| Height - Overall (In) | 7.4 |
| Length (mm) | 242 |
| Width (mm) | 175 |
| Height - Case (mm) | 190 |
| Height - Overall (mm) | 189 |
| Weight (lb) | 42 |
| Weight (kg) | 19 |
| BCI Group | Group 47 |
| Manufacturers Warranty | 12 Months |
