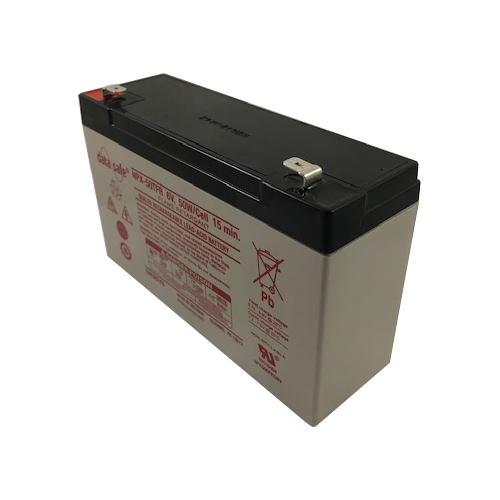

EnerSys DataSafe NPX-50TFR Lead Acid Battery
EnerSys DataSafe NPX Series NPX-50TFR 6 Volt / 13 Ah @20 Hr with F2 (0.250″) Terminals
Loading...
Description
EnerSys DataSafe NPX Series NPX-50TFR 6 Volt / 13 Ah @20 Hr with F2 (0.250″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-NPX-50F2FR |
| Dimensions | ” (L) x ” (W) x ” (H) |
| Dimensions (mm) | mm (L) x mm (W) x mm (H) |
| Weight | lbs ( kgs) |
Additional information
| Weight | 4.598 lbs |
|---|---|
| Manufacturer | EnerSys |
| price-discounts | Each (1 pieces), Box/Case (10 pieces), Pallet Layer (90 pieces), Pallet (450 pieces) |
| Product Line | DataSafe |
| Product Series | NPX Series |
| Model | NPX-50 |
| Terminal | F2 (0.250") |
| Case Material | Flame Retardant ABS Plastic |
| Manufacturers Model # | NPX-50TFR |
| Manufacturers SKU | NPX-50TFR |
| Voltage | 6 |
| Capacity (Nominal) | 13 Ah @20 Hr |
| Capacity @20 Hr | 13 |
| Capacity @15 Min | 50 W @15 Min |
| Chemistry | Lead Acid |
| Service Life | 3-5 Years |
| Internal Resistance | 6 |
| Cycle Charge Voltage | 13.5 to 13.8 Volts |
| Maximum Charge Current | 14.4 to 15.0 Volts |
| Storage Temp Low (°F) | -5°F (-15°C) to 122°F (50°C) |
| Length (In) | 5.94 |
| Width (In) | 1.97 |
| Height - Case (In) | 3.7 |
| Height - Overall (In) | 3.94 |
| Length (mm) | 151 |
| Width (mm) | 50 |
| Height - Case (mm) | 94 |
| Height - Overall (mm) | 100 |
| Weight (lb) | 4.598 |
| Weight (kg) | 2.09 |
| Manufacturers Warranty | 12 Months |
