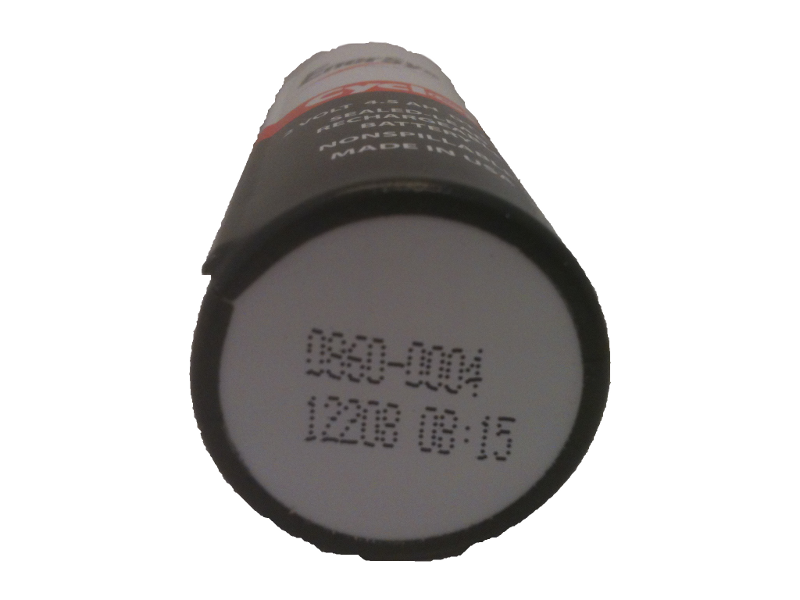

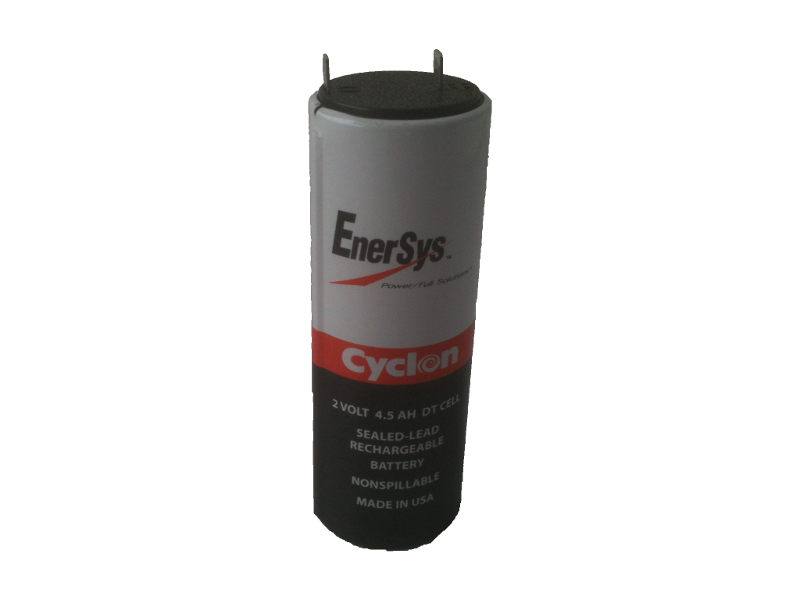

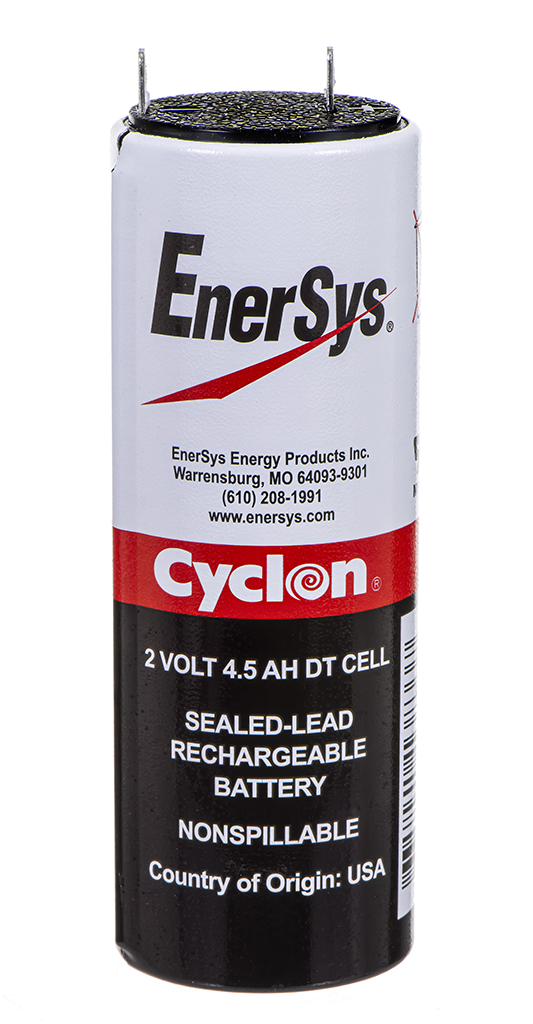

EnerSys Cyclon 0860-0004 Lead Acid (AGM-TPPL) Battery
$24.50
EnerSys Cyclon Series 0860-0004 2 Volt / 4.5 Ah @ 10 Hr with F1 (0.187″) Terminals
Out of stock
Loading...
Description
EnerSys Cyclon Series 0860-0004 2 Volt / 4.5 Ah @ 10 Hr with F1 (0.187″) Terminals
| Specifications | |
|---|---|
| Battery Store SKU | EN-0860-0004F1MJ |
| Dimensions | 1.34″ (L) x 1.34″ (W) x 3.78″ (H) |
| Dimensions (mm) | 34 mm (L) x 34 mm (W) x 96 mm (H) |
| Weight | 0.6 lbs (0.27 kgs) |
Additional information
| Weight | 0.6 lbs |
|---|---|
| Manufacturer | EnerSys |
| Product Series | Cyclon Series |
| Model | 0860-0004 |
| Terminal | F1 (0.187") |
| Case Material | Metal |
| Manufacturers Model # | 0860-0004 |
| Manufacturers SKU | 0860-0004 DTsc "Tall D" |
| Applications | High Rate;Deep Cycle |
| Voltage | 2 |
| Capacity (Nominal) | 4.5 Ah @ 10 Hr |
| Capacity @20 Hr | 4.8 |
| Capacity @10 Hr | 4.5 |
| Capacity @1 Hr | 3.7 |
| Capacity @15 Min | 2.8 |
| Chemistry | Lead Acid |
| Technology | AGM-TPPL |
| Shelf Life | 24 Months |
| Internal Resistance | 5.0 mOhm |
| Maximum Current | 400 Amps |
| Operating Temp Low (°F) | -85 |
| Operating Temp High (°F) | 176 |
| Storage Temp Low (°F) | -85 |
| Storage Temp High (°F) | 176 |
| Operating Temp Low (°C) | -65 |
| Operating Temp High (°C) | 80 |
| Storage Temp Low (°C) | -65 |
| Storage Temp High (°C) | 80 |
| Length (In) | 1.34 |
| Width (In) | 1.34 |
| Height - Case (In) | 3.78 |
| Height - Overall (In) | 4.06 |
| Length (mm) | 34 |
| Width (mm) | 34 |
| Height - Case (mm) | 96 |
| Height - Overall (mm) | 103 |
| Weight (lb) | 0.6 |
| Weight (kg) | 0.27 |
| Manufacturers Warranty | 12 Months |
