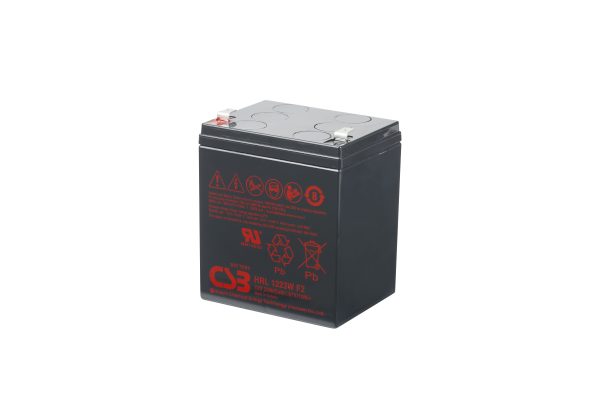

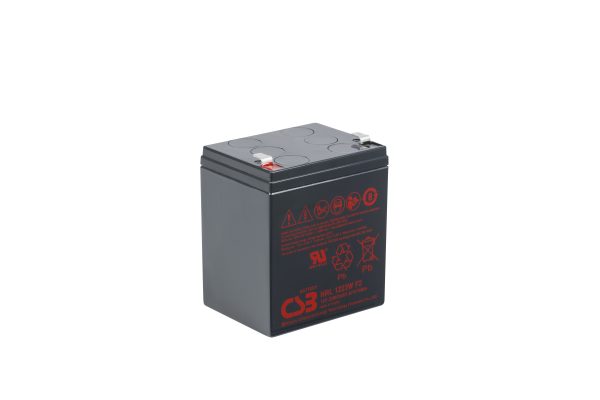

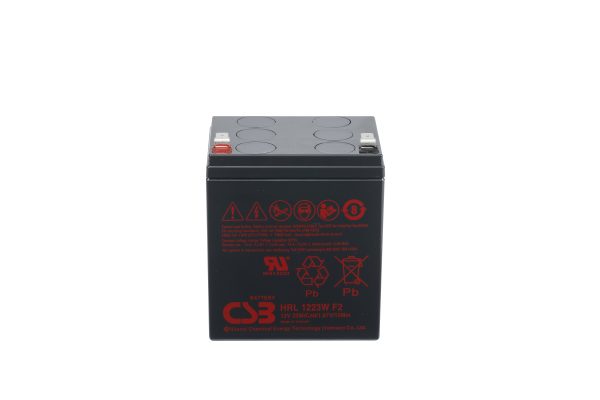

CSB HRL1223WF2 SLA (AGM) Battery
CSB HRL1223WF2 HRL Series 12 Volt / 5.8 Ah @20 Hr with F2 (0.250″) Terminals and ABS Plastic Case
Out of stock
Loading...
Description
CSB HRL1223WF2 HRL Series 12 Volt / 5.8 Ah @20 Hr with F2 (0.250″) Terminals and ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-HRL1223WF2 |
| Dimensions | 3.54″ (L) x 2.76″ (W) x 4.02″ (H) |
| Dimensions (mm) | 90 mm (L) x 70 mm (W) x 102 mm (H) |
| Weight | 4.6 lbs (2.1 kgs) |
Additional information
| Weight | 4.6 lbs |
|---|---|
| Manufacturer | CSB |
| Product Series | HRL Series |
| Model | HRL1223W |
| Terminal | F2 (0.250") |
| Case Material | ABS Plastic |
| Manufacturers Model # | HRL1223WF2 |
| Voltage | 12 |
| Capacity (Nominal) | 5.8 Ah @20 Hr |
| Capacity @20 Hr | 5.8 |
| Capacity @15 Min | 23 W @15 Min |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Shelf Life | 6 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Length (In) | 3.54 |
| Width (In) | 2.76 |
| Height - Case (In) | 4.02 |
| Height - Overall (In) | 4.17 |
| Length (mm) | 90 |
| Width (mm) | 70 |
| Height - Case (mm) | 102 |
| Height - Overall (mm) | 106 |
| Weight (lb) | 4.6 |
| Weight (kg) | 2.1 |
