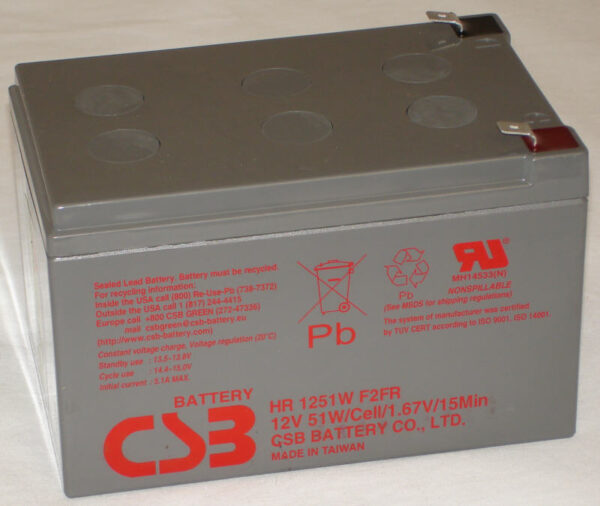

CSB HR1251WF2FR SLA (AGM) Battery
$57.38
CSB HR1251WF2FR HR Series 12 Volt / 13.5 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case
Out of stock
Loading...
Description
CSB HR1251WF2FR HR Series 12 Volt / 13.5 Ah @20 Hr with F2 (0.250″) Terminals and Flame Retardant UL94-V0 Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-HR1251WF2FR |
| Dimensions | 5.94″ (L) x 3.86″ (W) x 3.70″ (H) |
| Dimensions (mm) | 151 mm (L) x 98 mm (W) x 94 mm (H) |
| Weight | 8.5 lbs (3.85 kgs) |
Additional information
| Weight | 8.5 lbs |
|---|---|
| Manufacturer | CSB |
| Product Series | HR Series |
| Model | HR1251W |
| Terminal | F2 (0.250") |
| Case Material | Flame Retardant UL94-V0 |
| Manufacturers Model # | HR1251WF2FR |
| Voltage | 12 |
| Capacity (Nominal) | 13.5 Ah @20 Hr |
| Capacity @20 Hr | 13.5 |
| Capacity @15 Min | 51W@15 |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Shelf Life | 6 |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Operating Temp Low (°F) | 5 |
| Operating Temp High (°F) | 122 |
| Storage Temp Low (°F) | 5 |
| Storage Temp High (°F) | 104 |
| Operating Temp Low (°C) | -15 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | -15 |
| Storage Temp High (°C) | 40 |
| Length (In) | 5.94 |
| Width (In) | 3.86 |
| Height - Case (In) | 3.70 |
| Height - Overall (In) | 3.94 |
| Length (mm) | 151 |
| Width (mm) | 98 |
| Height - Case (mm) | 94 |
| Height - Overall (mm) | 100 |
| Weight (lb) | 8.5 |
| Weight (kg) | 3.85 |
