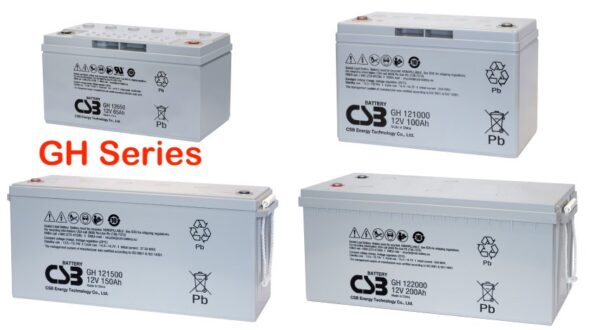

CSB GH122000 SLA (AGM) Battery
CSB GH122000 GH Series 12 Volt / 206Ah @ 20 Hr with Recessed M8 Terminals and ABS Plastic Case
Loading...
Description
CSB GH122000 GH Series 12 Volt / 206Ah @ 20 Hr with Recessed M8 Terminals and ABS Plastic Case
| Specifications | |
|---|---|
| Battery Store SKU | CS-GH122000R |
| Dimensions | 20.60″ (L) x 9.40″ (W) x 8.60″ (H) |
| Dimensions (mm) | 522 mm (L) x 240 mm (W) x 219 mm (H) |
| Weight | 127.9 lbs (58 kgs) |
Additional information
| Weight | 127.9 lbs |
|---|---|
| Manufacturer | CSB |
| price-discounts | |
| Product Line | |
| Product Series | GH Series |
| Model | GH122000 |
| Terminal | Recessed M8 |
| Terminal Layout | |
| Case Material | ABS Plastic |
| UPC Code | |
| Manufacturers Model # | GH122000 |
| Manufacturers SKU | |
| Deprecated Model # | |
| Applications | |
| Voltage | 12 |
| Capacity (Nominal) | 206Ah @ 20 Hr |
| Capacity @20 Hr | 206 |
| Capacity @10 Hr | 201 |
| Capacity @1 Hr | |
| Capacity @15 Min | |
| CCA | |
| PHCA | |
| Reserve Capacity | |
| Chemistry | Lead Acid |
| Technology | AGM-Lead Calcium |
| Design Life | |
| Service Life | |
| Shelf Life | 6 |
| Internal Resistance | 3 mOhm |
| Maximum Current | 2000 Amps |
| Cycles @ 80% Discharge | |
| Standby Charge Voltage | 13.5 to 13.8 VDC |
| Cycle Charge Voltage | 14.4 to 15.0 VDC |
| Maximum Charge Current | |
| Operating Temp Low (°F) | |
| Operating Temp High (°F) | |
| Storage Temp Low (°F) | |
| Storage Temp High (°F) | |
| Operating Temp Low (°C) | -30 |
| Operating Temp High (°C) | 50 |
| Storage Temp Low (°C) | |
| Storage Temp High (°C) | |
| Length (In) | 20.60 |
| Width (In) | 9.40 |
| Height - Case (In) | 8.60 |
| Height - Overall (In) | 8.80 |
| Length (mm) | 522 |
| Width (mm) | 240 |
| Height - Case (mm) | 219 |
| Height - Overall (mm) | 219 |
| Weight (lb) | 127.9 |
| Weight (kg) | 58 |
| BCI Group | |
| Manufacturers Warranty | |
| Transportation Notes | |
| Certifications | |
| Qty Per Box | |
| Qty Per Pallet |
